Adjustable Base Jack

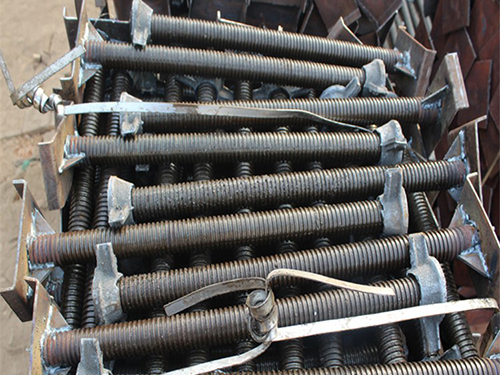

Adjustable Base Jack is an independent steel structural component fitted to the bottom of scaffolding vertical uprights for building temporary support. It is made up of threaded spindle, adjusting nut and flat welded base plate. Each component part performs separate mechanical functions, and the unit can complete foundation supporting and leveling tasks independently without additional scaffolding accessories. Carbon structural steel serves as the primary raw material. The threaded spindle comes in two common types: solid round steel bar and hollow seamless steel pipe. Solid spindle delivers superior compression and bending resistance, suitable for heavy‑load scaffolding and formwork shoring applications. Hollow spindle lowers overall self‑weight while satisfying medium‑load requirements, reducing physical effort during manual handling and site installation. Thread sections are mostly produced by cold rolling process, improving thread‑tooth surface hardness and mitigating wear caused by frequent nut rotation during repeated cyclic use. Adjusting nuts are manufactured via forging or casting, and their structural soundness governs locking stability under sustained vertical compression. The flat base plate expands contact area with the ground, disperses concentrated vertical pressure and reduces subsidence risk on soft or loose ground conditions.

Various surface anti‑corrosion treatments are available for different working environments. Hot‑dip galvanizing forms dense zinc‑iron alloy protective layers covering spindle, thread teeth and welding seams. This coating provides reliable resistance against rainwater, humid air and salt‑fog corrosion, suited for long‑term outdoor exposure and marine transportation. Electro‑galvanizing creates a relatively thin zinc layer, fitting short‑cycle construction projects with low corrosion exposure. Paint‑based finishes tend to peel off under thread friction and mechanical impact, so they are rarely used for scaffolding hardware with high turnover frequency. Unlike top‑mounted U‑head jacks, this component is intended exclusively for the base position of support uprights. It receives vertical loads transmitted from upper frames and offsets foundation height differences, helping scaffolding platforms maintain horizontal flatness.

Key dimensional parameters determine actual mechanical performance. Spindle outer diameter is a major load‑bearing indicator; larger diameter yields higher ultimate compression capacity. Effective adjustment stroke defines valid height‑changing range. Over‑exposed threaded segments outside the valid stroke will decrease structural rigidity and raise bending‑deformation risk under load. Base‑plate thickness and overall size should match site ground‑bearing capacity. Undersized base plates generate excessive ground pressure and may result in local settlement. This component is compatible with multiple mainstream scaffolding systems, including tube‑and‑coupler scaffolding, ringlock, cuplock and frame‑type shoring structures. Dimensional tolerances must comply with relevant international technical standards to ensure secure physical fit during on‑site assembly.

Prior to field deployment, visual inspection and sampling mechanical tests shall be performed as independent inspection procedures. Visual checks cover spindle bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Recycled adjustable base jacks require stricter inspection criteria. Even with intact outward appearance, invisible metal fatigue can accumulate through repeated load cycles and cannot be detected by visual observation alone. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Units with permanent bending, thread slipping or structural cracks must be sorted out and scrapped and must not be reused in construction. Secondary modifications such as cutting, welding or hole‑drilling on finished adjustable base jack are prohibited. Unauthorized alteration changes original steel‑section properties and weakens overall load‑bearing capability.

Adjustable Base Jack is designed for cyclic reuse. After scaffolding dismantling, concrete mortar, dust and foreign residues adhering to spindle and thread grooves need thorough cleaning. Debris trapped within threads can cause nut jamming and impair normal height adjustment and locking in subsequent working cycles. Finished units should be stored in dry‑ventilated conditions, sorted and stacked by specification, avoiding prolonged rain soaking and direct contact with damp soil. Improper site practices include over‑extending the threaded spindle, setting the base plate on uneven ground or scattered debris, and applying loads beyond rated capacity. Such misuse can cause component deformation and abnormal local‑stress distribution within scaffolding frames. As an independent bottom adjustable load‑bearing unit, its structural integrity and mechanical stability directly influence foundation stress conditions of temporary scaffolding structures and form essential prerequisites for safe overall scaffolding operation.
