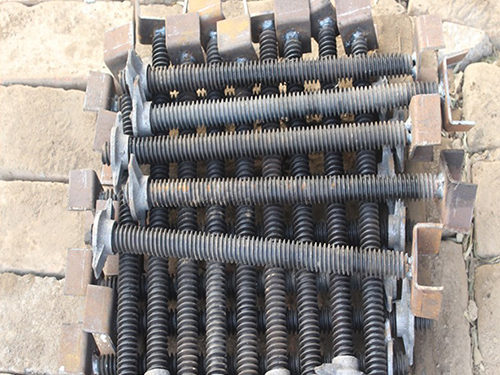

Adjustable Scaffold Base Jack

Adjustable scaffold base jack is an independent steel structural component installed beneath scaffolding vertical uprights for temporary construction support. It is composed of threaded spindle, adjusting nut and flat welded base plate. Each structural part undertakes separate mechanical functions, and the component can realize foundation bearing and height leveling independently without relying on other scaffolding accessories. Carbon structural steel acts as the main raw material. The threaded spindle is available in solid round steel bar and hollow seamless steel pipe. Solid spindle features compact metal texture, high compression and bending resistance, suitable for heavy‑load scaffolding and formwork shoring conditions. Hollow spindle reduces overall self‑weight while meeting load requirements of conventional medium‑load construction scenes, lowering labor intensity for manual carrying and installation. Thread sections are mostly processed by cold rolling craft, improving surface hardness of thread teeth and reducing wear caused by frequent nut rotation during repeated cyclic turnover. Adjusting nuts are produced through forging or casting procedures, and their structural integrity determines locking reliability under long‑term vertical compression load. The flat base plate is welded to the bottom of spindle. Its enlarged planar structure expands contact area with supporting ground, disperses concentrated vertical pressure and effectively decreases subsidence risk on soft or loose foundation.

Multiple surface anti‑corrosion treatments are adopted to fit different service environments. Hot‑dip galvanizing forms dense zinc‑iron alloy protective layers covering spindle, thread teeth and welding joints. This coating resists erosion from rainwater, humid air and salt fog, and adapts to long‑term outdoor exposure and marine transportation conditions. Electro‑galvanizing generates relatively thin zinc layer on steel surface, which satisfies usage demands of short‑cycle construction projects with low corrosion risk. Paint‑coated surfaces are easy to peel off under thread friction and mechanical collision, so they are seldom applied for scaffolding hardware with high turnover frequency. This base jack is limited to bottom installation position of scaffolding uprights, different from top‑arranged U‑head jack. It bears vertical loads transferred from upper scaffolding frames, and offsets height differences of site foundation, so that the whole scaffolding platform can maintain horizontal flatness.

Core dimensional parameters define its practical mechanical performance. Spindle outer diameter is one of the key load‑bearing indicators, and larger diameter corresponds to higher ultimate compression capacity. Effective adjustment stroke sets valid height‑adjusting scope. Excessively exposed threaded segments beyond effective stroke will lower structural rigidity and increase bending deformation risk under load. Base plate thickness and planar size shall match actual ground bearing capacity. Undersized base plate will produce excessive ground pressure and trigger local settlement. This component can match multiple mainstream scaffolding systems, including tube‑and‑coupler scaffolding, ringlock, cuplock and frame‑type shoring structures. Dimensional tolerances shall comply with corresponding international technical specifications to guarantee stable physical fitting during on‑site assembly.

Before being put into construction use, visual inspection and sampling mechanical tests shall be carried out as independent inspection workflows. Visual examination covers spindle bending deformation, surface cracks, welding discontinuity, thread tooth damage and anti‑corrosion layer peeling. Recycled adjustable scaffold base jacks require stricter inspection standards. Even with intact outer appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be distinguished only by surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and shall not be mixed into construction deployment. Secondary modification such as cutting, welding and hole‑drilling on finished adjustable scaffold base jack is prohibited. Random alteration will change original steel section characteristics and weaken overall load‑bearing performance of the component.

Adjustable scaffold base jack is designed for cyclic reuse. After scaffolding dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves need thorough cleaning. Impurities trapped inside thread gaps will cause nut jamming and interfere with normal height adjustment and locking function in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include over‑extending threaded spindle, placing base plate on uneven ground or scattered debris, and applying load exceeding rated limit. These improper operations may lead to component deformation and abnormal local stress distribution of scaffolding frames. As an independent bottom adjustable load‑bearing unit, its structural integrity and mechanical stability directly affect foundation stress state of temporary scaffolding structures, and constitute essential preconditions for overall safe operation of scaffolding systems.
