Scaffold Base Jack

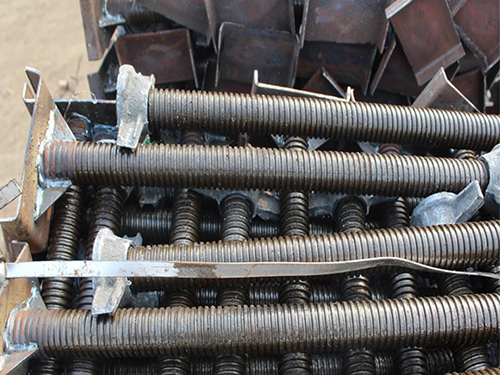

Scaffold Base Jack is an independent steel structural component installed beneath scaffolding vertical uprights for building temporary shoring systems. It is composed of threaded spindle, adjusting nut and flat welded base plate. Each structural part carries discrete mechanical functions, and the whole unit can realize foundation bearing and leveling independently without auxiliary scaffolding hardware. Carbon structural steel is adopted as main raw material. The threaded spindle has two mainstream variants, solid round steel bar and hollow seamless steel pipe. Solid spindle features dense metal texture, outstanding compression and bending resistance, suitable for heavy‑load scaffolding and formwork support scenarios. Hollow spindle reduces overall dead weight while meeting medium‑load requirements, lowering labor intensity for manual handling and field installation. Thread profiles are mostly formed by cold rolling process, improving thread tooth surface hardness and reducing abrasion from repeated nut rotation during cyclic turnover. Adjusting nuts are produced by forging or casting, and their structural integrity ensures locking reliability under long‑term vertical compression. The flat base plate enlarges contact area with supporting ground, disperses concentrated vertical pressure and mitigates subsidence risk on soft or loose foundation.

Multiple anti‑corrosion surface treatments adapt to diverse operating environments. Hot‑dip galvanizing generates compact zinc‑iron alloy protective layers covering spindle, thread teeth and welding seams. This coating resists erosion from rainwater, humid air and salt fog, suitable for long‑term outdoor exposure and marine transportation. Electro‑galvanizing delivers relatively thin zinc surface layer, applicable for short‑cycle construction projects with low corrosion risk. Paint coating easily peels off under thread friction and mechanical collision, so it is seldom applied for scaffolding hardware with high reuse frequency. Different from top‑mounted U‑head jack, this component is only fitted at the bottom of scaffolding uprights. It undertakes vertical loads passed down from upper scaffolding frames and offsets site foundation elevation differences, keeping the whole scaffolding platform horizontally flat.

Core dimensional parameters define practical mechanical performance. Spindle outer diameter acts as a vital load‑bearing indicator; larger diameter corresponds to higher ultimate compression capacity. Effective adjustment stroke sets valid height‑changing scope. Over‑exposed threaded segments beyond valid stroke will lower structural rigidity and increase bending deformation risk under loaded status. Base plate thickness and planar dimension shall match actual ground bearing capacity. Undersized base plate creates excessive local pressure and leads to ground settlement. This component fits multiple mainstream scaffolding systems, including tube‑and‑coupler scaffolding, ringlock, cuplock and frame‑type shoring structures. Dimensional tolerances need to comply with corresponding international technical specifications to guarantee stable physical matching during on‑site assembly.

Before putting into construction service, visual inspection and sampling mechanical tests shall be conducted as independent inspection procedures. Visual examination checks spindle bending deformation, surface cracks, welding discontinuity, thread tooth damage and anti‑corrosion layer peeling. Recycled scaffold base jacks require stricter inspection standards. Even with complete outer appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be identified only by surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and are forbidden to be reused in construction. Secondary modification including cutting, welding and hole‑drilling on finished scaffold base jack is prohibited. Unauthorized alteration changes original steel section features and weakens overall load‑bearing performance of the component.

Scaffold Base Jack is designed for cyclic reuse. After scaffolding dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves shall be fully cleaned. Impurities trapped inside thread grooves will cause nut jamming and affect normal height adjustment and locking in subsequent service cycles. Finished products shall be stored in dry and ventilated space, sorted and stacked by specification, avoiding long‑time rain soaking and direct contact with damp soil. Improper site operations include over‑extending threaded spindle, placing base plate on uneven ground or sundries, and applying load exceeding rated capacity. These improper operations may trigger component deformation and abnormal local stress distribution of scaffolding frames. As an independent bottom load‑bearing unit of scaffolding systems, its structural integrity and mechanical stability directly affect foundation stress condition of temporary scaffolding structures, and form essential prerequisites for safe operation of entire scaffolding assemblies.
