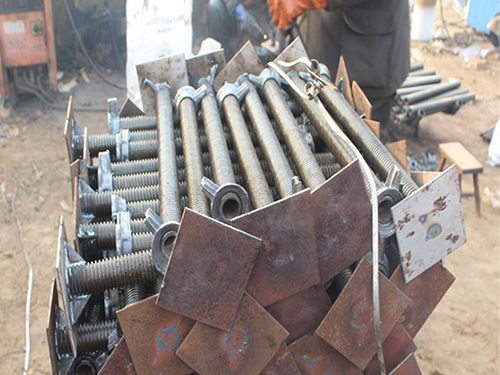

Formwork U Head Jack

Formwork U Head Jack is an independent steel structural component specially applied to concrete formwork temporary shoring. It consists of threaded spindle, adjusting nut and U‑shaped cradle head. Each structural part undertakes separate mechanical functions, and the component can complete beam supporting and height adjustment independently without relying on extra auxiliary hardware. Its main raw material is carbon structural steel. The threaded spindle is available in solid round‑steel bar and hollow seamless steel pipe variants. Solid spindle delivers higher compression and bending resistance, suitable for heavy‑load formwork scenarios such as thick concrete slab shoring and large‑span beam support. Hollow spindle reduces overall self‑weight while meeting medium‑load bearing requirements, easing manual handling and installation on construction sites. Thread profiles are mostly formed by cold rolling process, improving surface hardness of thread teeth and lowering wear risk caused by repeated nut rotation during cyclic turnover. Adjusting nuts are manufactured by forging or casting, and their structural integrity determines locking reliability under continuous vertical compression load. The U‑shaped cradle head is welded to the top of spindle. Its two parallel vertical side plates form a restraining groove, which can accommodate timber beams, H20 beams and steel beams, restricting lateral displacement and slipping of horizontal load‑bearing members under concrete pouring load. Reinforcing welds can be added at the joint between U‑head and spindle to improve connection strength under heavy pressure.

Different surface anti‑corrosion treatments are adopted to adapt to various construction environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering spindle, thread teeth and welding joints. This coating resists erosion from rainwater, humid air and salt fog, fitting long‑term outdoor exposure and cross‑ocean transportation. Electro‑galvanizing generates relatively thin zinc layer on steel surface, applicable to short‑cycle formwork projects with low corrosion risk. Paint‑coated surfaces tend to peel off under thread friction and mechanical collision, so they are rarely selected for frequently‑circulated formwork hardware. This component is exclusively installed at the upper end of scaffolding or shoring uprights, different from bottom‑placed leveling base jack. It bears downward loads transmitted by formwork, concrete and horizontal beams, and realizes micro height adjustment to calibrate formwork elevation and flatness before concrete casting.

Core dimensional parameters define its actual mechanical performance. Spindle outer diameter is a key indicator of load‑bearing capacity, and larger diameter corresponds to higher ultimate compression resistance. Effective adjustment stroke sets valid height‑changing scope. Excessively exposed threaded segments beyond effective stroke will reduce structural rigidity and raise bending deformation risk under load. Opening width and inner depth of U‑shaped cradle shall match the cross‑section dimension of supported beams. Mismatched size will cause insufficient contact area, unstable clamping or beam dislocation. This component is compatible with multiple shoring systems, including tube‑and‑coupler scaffolding, ringlock and cuplock shoring frames. Dimensional tolerances shall comply with corresponding international technical specifications to guarantee reliable assembly with vertical upright tubes.

Before site deployment, visual inspection and sampling mechanical tests shall be carried out as independent inspection workflows. Visual examination covers spindle bending deformation, surface cracks, welding discontinuity at U‑head joint, thread tooth damage and anti‑corrosion layer peeling. Recycled formwork U Head Jacks require stricter inspection criteria. Even with intact outer appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely by surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and cannot be mixed into formwork construction. Secondary modification such as cutting, welding and hole‑drilling on finished U Head Jack is prohibited. Random alteration will change original steel section characteristics and weaken overall load‑bearing performance of the component.

Formwork U Head Jack is designed for cyclic reuse. After formwork dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves need thorough cleaning. Impurities trapped inside threads will cause nut jamming and interfere with normal height adjustment and locking effect in subsequent application. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include over‑extending threaded spindle, placing beams offset from U‑head central bearing position, and applying load exceeding rated limit. These improper practices may trigger component deformation, beam slipping and abnormal local stress of shoring frames. As an independent top adjustable supporting unit for formwork systems, its structural integrity and mechanical stability directly affect load transmission state of formwork shoring, and constitute essential preconditions for safe concrete pouring and forming quality control.
