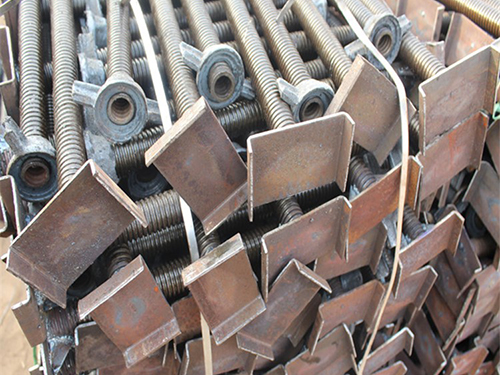

Heavy Duty Screw Jack

Heavy duty screw jack is an independent high‑load steel structural component used for heavy‑duty scaffolding and formwork shoring in construction projects. It consists of heavy‑gauge threaded spindle, high‑strength adjusting nut and reinforced load‑bearing end, which can be configured as flat base plate or U‑shaped head to satisfy bottom foundation support and top load propping respectively. Each structural part performs separate mechanical functions, and the whole assembly can complete height calibration and heavy‑load bearing tasks independently without relying on additional scaffolding accessories. High‑grade carbon structural steel serves as main raw material. The spindle mostly adopts solid round steel bar with enlarged diameter to achieve enhanced compression and bending resistance. Individual heavy‑duty hollow spindles are produced from extra‑thick seamless steel pipe for scenarios that require both load capacity and controlled self‑weight. Thread sections are processed through precision cold rolling, increasing thread tooth hardness and wear resistance to sustain frequent rotation under substantial continuous pressure. Adjusting nuts are manufactured by heavy‑duty forging instead of ordinary casting, reducing the risk of nut cracking or thread slipping under long‑term heavy compression. Reinforced base plate features increased thickness and expanded planar dimension, enlarging contact area with supporting surface, dispersing concentrated heavy vertical pressure and effectively mitigating subsidence risk on compacted ground. Reinforced U‑head adopts thickened steel plate welding or integral stamping structure, providing stable clamping space for large‑size steel beams and timber beams to bear heavy dead load from high‑thickness concrete pouring.

Multiple anti‑corrosion surface treatments are applied to fit different service environments. Hot‑dip galvanizing forms dense zinc‑iron alloy protective layers covering spindle, thread teeth and all welding seams. This coating offers reliable resistance against rainwater, humid air and salt fog erosion, suitable for long‑term outdoor exposure and long‑distance marine transportation. Electro‑galvanizing produces relatively thin zinc surface layer, which is only applicable to short‑cycle heavy‑load projects with low corrosion risk. Paint‑based surface treatment is prone to peeling under heavy‑load friction and mechanical impact, so it is rarely adopted for heavy‑duty screw jacks with high safety requirements. According to installation positions, heavy duty screw jack is divided into base type and U‑head type. Base type is installed underneath heavy‑load vertical uprights to undertake overall frame vertical loads and compensate foundation elevation deviations. U‑head type is assembled at the top of heavy‑duty support members to constrain large‑size horizontal load‑bearing components and withstand heavy pressure transmitted from formwork systems.

Core dimensional parameters determine its actual heavy‑load mechanical performance. Spindle outer diameter is the core indicator of load‑bearing grade; larger spindle diameter corresponds to higher ultimate compression capacity. Effective adjustment stroke defines valid height‑changing range. Excessively exposed threaded segments beyond the effective stroke will reduce overall structural rigidity and greatly raise bending deformation risk under heavy load. The thickness and size of base plate or U‑head shall match actual heavy‑load site conditions. Undersized or thin‑walled bearing ends will cause excessive local pressure, resulting in settlement, deformation or component failure. This heavy‑duty component is compatible with high‑load scaffolding and shoring systems, including heavy‑duty tube‑and‑coupler scaffolding, ringlock shoring and large‑span formwork support frames. Dimensional tolerances must comply with corresponding international heavy‑duty technical specifications to guarantee stable physical fitting during field assembly.

Before putting into construction service, visual inspection and enhanced sampling mechanical tests shall be implemented as independent inspection procedures. Visual examination covers spindle bending deformation, surface cracks, welding discontinuity, thread tooth damage and anti‑corrosion layer peeling. Recycled heavy duty screw jacks apply stricter inspection standards. Even with intact outer appearance, invisible metal fatigue may accumulate after repeated heavy‑load cycles and cannot be identified merely through surface observation. Sampling compression tests adopt higher load test thresholds to verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and are prohibited from being mixed into heavy‑load construction usage. Secondary modification such as cutting, welding and hole‑drilling on finished heavy duty screw jack is strictly forbidden. Random alteration will change original steel section characteristics and greatly weaken the overall heavy‑load bearing performance of the component.

Heavy duty screw jack is designed for cyclic turnover under high‑load conditions. After support frame dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves need thorough cleaning. Residues trapped in thread gaps will cause nut jamming and interfere with normal height adjustment and locking performance in subsequent heavy‑load application. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include over‑extending threaded spindle, placing bearing end on uneven ground or sundries, and applying load exceeding rated heavy‑duty limit. These improper operations may trigger component bending and local stress overload of heavy‑duty shoring frames. As an independent high‑strength adjustable load‑bearing unit, its structural integrity and mechanical stability directly affect the stress state of heavy‑duty temporary support structures, and constitute essential prerequisites for safe operation of heavy‑load scaffolding and large‑scale formwork shoring systems.
