Scaffold Base Jack

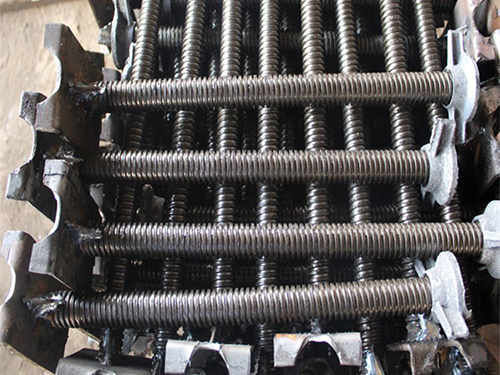

Scaffold Base Jack is an independent steel structural component installed beneath the vertical uprights of scaffolding for building temporary support. It consists of threaded spindle, adjusting nut and flat base plate connected by welding. Each structural part bears separate mechanical functions, and the component can complete foundation support and leveling work independently without relying on other scaffolding hardware accessories. Carbon structural steel is adopted as main raw material. The threaded spindle has two common structural forms: solid round steel bar and hollow seamless steel pipe. Solid spindle features dense metal texture, excellent compression and bending resistance, suitable for heavy‑load scaffolding and formwork shoring conditions. Hollow spindle reduces overall self‑weight while meeting load requirements of conventional medium‑load construction scenarios, lowering labor intensity during manual carrying and site installation. Thread sections are mostly processed by cold rolling process, improving surface hardness of thread teeth and reducing wear risk caused by repeated nut rotation in cyclic turnover. Adjusting nuts are manufactured through forging or casting, and their structural integrity determines locking reliability under long‑term vertical compression load. The flat base plate expands contact area with the ground, disperses concentrated vertical pressure and effectively lowers subsidence risk on soft or loose foundation surfaces.

Multiple surface anti‑corrosion treatments are available to adapt to different service environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering spindle, thread teeth and welding seams. This coating provides stable resistance against rainwater, humid air and salt fog erosion, applicable for long‑term outdoor exposure and marine transportation. Electro‑galvanizing generates relatively thin zinc layer on steel surface, fitting short‑cycle construction projects with low corrosion risk. Paint‑based surface treatment is prone to peeling under thread friction and mechanical collision, so it is rarely used for scaffolding hardware with high turnover frequency. Different from top‑mounted U‑head jack, this component is only arranged at the bottom of scaffolding uprights. It undertakes vertical loads transmitted from upper scaffolding frames and offsets height deviations of construction site foundation, so as to keep the overall scaffolding platform horizontally flat.

Core dimensional parameters define its practical mechanical performance. Spindle outer diameter serves as a key load‑bearing indicator, and larger diameter corresponds to higher ultimate compression capacity. Effective adjustment stroke sets valid height‑adjusting range. Excessively exposed threaded segments beyond effective stroke will reduce structural rigidity and increase bending deformation risk under load. The thickness and planar size of base plate shall match actual ground bearing capacity. Undersized base plate will produce excessive ground pressure and trigger local settlement. This component can be matched with multiple mainstream scaffolding systems, including tube‑and‑coupler scaffolding, ringlock, cuplock and frame‑type shoring structures. Dimensional tolerances shall comply with corresponding international technical specifications to guarantee reliable physical fitting during on‑site assembly.

Before being put into construction application, visual inspection and sampling mechanical tests shall be carried out as independent inspection workflows. Visual examination covers spindle bending deformation, surface cracks, welding discontinuity, thread tooth damage and anti‑corrosion layer peeling. Recycled scaffold base jacks require stricter inspection standards. Even with intact outer appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and shall not be mixed into construction deployment. Secondary modification such as cutting, welding and hole‑drilling on finished scaffold base jack is prohibited. Random alteration will change original steel section characteristics and weaken overall load‑bearing performance of the component.

Scaffold Base Jack is designed for cyclic reuse. After scaffolding dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves need thorough cleaning. Impurities trapped inside thread gaps will cause nut jamming and interfere with normal height adjustment and locking function in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include over‑extending threaded spindle, placing base plate on uneven ground or scattered debris, and applying load exceeding rated limit. These improper operations may lead to component deformation and abnormal local stress distribution of scaffolding frames. As an independent bottom load‑bearing unit of scaffolding systems, its structural integrity and mechanical stability directly affect foundation stress state of temporary scaffolding structures, and constitute essential preconditions for overall safe operation of scaffolding assemblies.
