Screw Jack Top Support

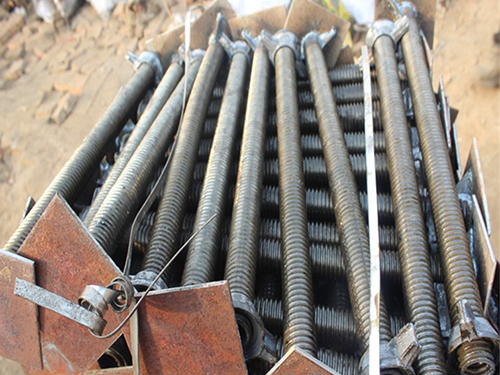

Screw Jack Top Support is an independent steel structural component installed at the upper end of vertical scaffolding or shoring uprights for concrete formwork temporary support. It consists of threaded spindle, adjusting nut and top load‑bearing head. The top head can adopt U‑shaped cradle or flat top plate to hold horizontal load‑bearing members. Each structural part fulfills discrete mechanical functions, and the whole unit can realize load transmission and height calibration independently without relying on extra scaffolding hardware accessories. Carbon structural steel serves as the primary raw material. The threaded spindle has two mainstream configurations, solid round steel bar and hollow seamless steel pipe. Solid spindle features dense metal texture, superior compression and bending resistance, suitable for heavy‑load formwork conditions such as thick concrete slab shoring and large‑span beam support. Hollow spindle reduces overall self‑weight while satisfying medium‑load bearing requirements, lowering physical burden for manual handling and field installation. Thread sections are mostly processed by cold rolling technology, improving surface hardness of thread teeth and mitigating wear caused by repeated nut rotation during cyclic turnover usage. Adjusting nuts are manufactured by forging or casting processes, and their structural completeness determines locking stability under sustained vertical compression load. The U‑shaped cradle head forms a restraining groove to accommodate timber beams, H20 beams and steel beams, limiting lateral displacement and slipping of horizontal components under concrete pouring loads. The flat top plate provides wide bearing surface for distributing concentrated pressure. Welding joints between top head and spindle are key stress‑bearing positions, and welding continuity shall be guaranteed during processing.

Different surface anti‑corrosion treatments are available to adapt to diverse construction environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering spindle, thread teeth and all welding seams. This coating delivers stable resistance against rainwater, humid air and salt fog erosion, fitting long‑term outdoor exposure and marine transportation scenarios. Electro‑galvanizing produces relatively thin zinc layer on steel surface, applicable for short‑cycle construction projects with low corrosion risk. Paint finishing tends to peel off under thread friction and mechanical impact, so it is rarely adopted for formwork hardware with high turnover frequency. This component is exclusively arranged on top of vertical support uprights, different from bottom‑positioned leveling base jack. It receives downward loads from formwork, fresh concrete and horizontal beams, and completes micro height adjustment to calibrate formwork elevation and flatness before concrete casting.

Core dimensional parameters define its practical mechanical performance. Spindle outer diameter is a critical indicator of load‑bearing grade, and larger diameter corresponds to higher ultimate compression capacity. Effective adjustment stroke sets valid height‑changing range. Excessively exposed threaded segments outside effective stroke scope will reduce structural rigidity and raise bending deformation risk under load. Opening width of U‑shaped cradle or dimension of flat top plate shall match cross‑section size of supported beams. Mismatched dimension will lead to insufficient contact area, unstable clamping or component dislocation. This top support component is compatible with multiple mainstream shoring systems, including tube‑and‑coupler scaffolding, ringlock and cuplock shoring frames. Dimensional tolerances shall comply with corresponding international technical specifications to guarantee reliable physical fitting with vertical upright tubes during on‑site assembly.

Prior to field deployment, visual inspection and sampling mechanical tests shall be implemented as independent inspection workflows. Visual examination covers spindle bending deformation, surface cracks, welding discontinuity at head connection, thread tooth damage and anti‑corrosion layer peeling. Recycled screw jack top supports require stricter inspection criteria. Even with intact outer appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and shall not be mixed into formwork construction application. Secondary modification operations including cutting, welding and hole‑drilling on finished screw jack top support are prohibited. Arbitrary alteration will change original steel section characteristics and weaken overall load‑bearing performance of the component.

Screw Jack Top Support is designed for cyclic reuse. After formwork dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves need thorough cleaning. Impurities trapped inside thread gaps will cause nut jamming and interfere with normal height adjustment and locking effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include over‑extending threaded spindle, offset load placement on top bearing surface, and applying load exceeding rated limit. These improper practices may trigger component deformation, beam slipping and abnormal local stress distribution of shoring frames. As an independent top adjustable load‑bearing unit for temporary support structures, its structural integrity and mechanical stability directly influence load transmission state of formwork shoring, and constitute essential prerequisites for safe concrete pouring and formwork dimension control.
