U Head Jack

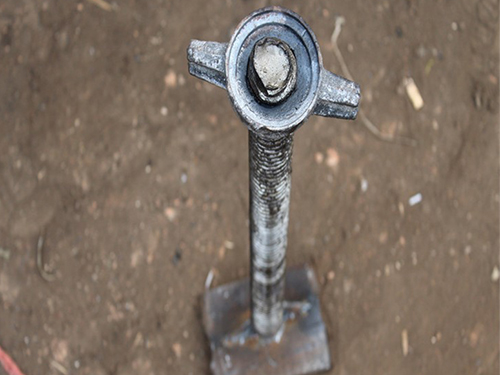

U Head Jack is an independent steel structural component installed at the top of vertical shoring uprights for concrete formwork temporary support. It is composed of threaded spindle, adjusting nut and U‑shaped cradle head. Each structural part performs separate mechanical functions, and the whole assembly can complete beam clamping and height adjustment independently without relying on extra scaffolding accessories. Carbon structural steel serves as the primary raw material. The threaded spindle has two mainstream forms: solid round steel bar and hollow seamless steel pipe. Solid spindle delivers high compression and bending resistance, suitable for heavy‑load scenarios such as thick concrete slab shoring and large‑span beam support. Hollow spindle reduces overall self‑weight while meeting medium‑load bearing requirements, lowering labor burden for manual carrying and site installation. Thread sections are mostly processed by cold rolling technology, improving surface hardness of thread teeth and reducing wear caused by frequent nut rotation during cyclic turnover. Adjusting nuts are manufactured by forging or casting processes, and their structural completeness determines locking stability under sustained vertical compression load. The U‑shaped cradle head is welded to the spindle top. Two parallel side plates form an open clamping groove, which can accommodate timber beams, H20 beams and steel beams, restricting lateral displacement and slipping of horizontal members under concrete pouring loads. Weld seams between U‑head and spindle are critical stress‑bearing positions, and welding continuity shall be guaranteed during production.

Multiple surface anti‑corrosion treatments are available to adapt to different service environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering spindle, thread teeth and all welding joints. This coating resists erosion from rainwater, humid air and salt fog, fitting long‑term outdoor exposure and marine transportation. Electro‑galvanizing produces relatively thin zinc layer on steel surface, applicable for short‑cycle construction projects with low corrosion risk. Paint finishing tends to peel off under thread friction and mechanical impact, so it is rarely adopted for high‑turnover formwork hardware. Different from bottom‑mounted base jack, this component is only assembled on the upper end of support uprights. It bears downward loads from formwork, fresh concrete and horizontal beams, and conducts micro height adjustment to calibrate formwork elevation and flatness before concrete casting.

Core dimensional parameters define its practical mechanical performance. Spindle outer diameter is a key load‑bearing indicator, and larger diameter corresponds to higher ultimate compression capacity. Effective adjustment stroke sets valid height‑changing range. Excessively exposed threaded segments beyond effective stroke scope will reduce structural rigidity and increase bending deformation risk under load. Opening width and inner depth of U‑shaped cradle shall match cross‑section size of supported beams. Mismatched dimensions will lead to insufficient contact area, unstable clamping or beam dislocation. This component is compatible with multiple mainstream shoring systems, including tube‑and‑coupler scaffolding, ringlock and cuplock shoring frames. Dimensional tolerances shall comply with corresponding international technical specifications to ensure reliable physical fitting with vertical upright tubes during field assembly.

Before site deployment, visual inspection and sampling mechanical tests shall be implemented as independent inspection workflows. Visual examination covers spindle bending deformation, surface cracks, welding discontinuity at U‑head joint, thread tooth damage and anti‑corrosion layer peeling. Recycled U Head Jacks require stricter inspection criteria. Even with intact outer appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and shall not be mixed into construction usage. Secondary modification including cutting, welding and hole‑drilling on finished U Head Jack is prohibited. Arbitrary alteration will change original steel section characteristics and weaken overall load‑bearing performance of the component.

U Head Jack is designed for cyclic reuse. After formwork dismantling, concrete mortar, dust and foreign residues attached to spindle and thread grooves need thorough cleaning. Impurities trapped inside thread gaps will cause nut jamming and interfere with normal height adjustment and locking effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include over‑extending threaded spindle, offset load placement inside U‑head cradle, and applying load exceeding rated limit. These improper practices may trigger component deformation, beam slipping and abnormal local stress distribution of shoring frames. As an independent top adjustable load‑bearing unit for formwork and scaffolding systems, its structural integrity and mechanical stability directly affect load transmission of temporary support structures, and constitute essential preconditions for safe concrete pouring and formwork dimension control.
