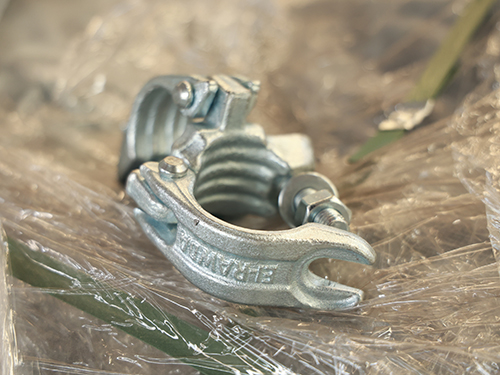

Forged Scaffolding Coupler

Forged Scaffolding Coupler is heavy‑duty connection hardware for tube‑and‑clamp scaffolding systems. Main product range includes forged right‑angle coupler, swivel coupler, sleeve coupler, putlog coupler, girder coupler and board‑retaining coupler. Produced by hot drop‑forging process, the coupler body gains compact metal grain structure, superior impact resistance and higher anti‑slip load capacity compared with stamped pressed couplers, which makes it preferred for high‑safety‑priority and heavy‑load construction sites. Each assembly consists of drop‑forged steel body, high‑strength T‑bolt and matched nut. By tightening nuts, couplers firmly clamp intersecting scaffold steel tubes to build facade scaffolds, heavy‑load shoring towers and complex industrial surrounding frameworks without modifying original building structures. Premium Q235 carbon steel bar serves as raw material for forging blanks. Material test certificates and batch inspection documents can be provided for export orders. Common finished sizes cover 48.3×48.3mm, 48.3×60.3mm and mixed‑diameter specifications, complying with British, European and other regional market standards. Main manufacturing workflows include hot drop forging, trimming, thread machining, rivet assembly and anti‑corrosion surface finishing. Every finished piece goes through strict inspection to rule out forging cracks, body distortion and thread‑damage defects. Custom logo stamping and special dimension adjustment are available upon client requirements.

Multiple surface anti‑corrosion treatments are optional for forged scaffolding coupler. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering coupler bodies, clamping surfaces and bolt threads. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects under low‑corrosion environment. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term harsh working conditions, as paint layers tend to peel off under frequent mechanical friction and impact. Forged scaffolding coupler transfers structural loads by friction clamping force between steel tubes. Proper bolt tightening torque guarantees anti‑slip performance of tube joints, restrains local displacement risk and ensures overall framework stability of scaffolding systems.

Core dimensional parameters determine practical mechanical performance of forged scaffolding coupler. Coupler clamping aperture must precisely match outer diameter of mating scaffold tubes. Bolt grade and nut dimension directly influence friction‑locking capacity. Specification mismatch between coupler inner size and tube outer diameter will cause local stress concentration and hidden safety hazards. This product complies with mainstream international standards including EN 74‑1, BS 1139 and CE requirements. Third‑party anti‑slip mechanical test reports and material certificates can be supplied upon customer request. Good component interchangeability enables flexible assembly adapting to various site layout requirements.

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out for each production batch. Visual examination covers coupler body forging cracks, permanent deformation, thread damage and surface coating peeling. Reused forged scaffolding couplers require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated heavy‑load cycles and cannot be judged merely through surface observation. Sampling slip‑resistance tests verify ultimate bearing capacity and anti‑deformation performance. Couplers with body fracture, thread sliding and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished forged couplers is strictly forbidden. Unauthorized alteration will destroy original forging mechanical properties and greatly reduce joint safety performance.

Forged scaffolding coupler supports cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Cement mortar, dust and foreign residues attached to coupler clamping openings and bolt threads need thorough cleaning before next application. Impurities trapped in clamping positions will cause jamming and reduce friction locking force, interfering with assembling, clamping and dismounting effect in subsequent service cycles. Finished forged couplers shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations including adoption of damaged couplers, insufficient bolt tightening torque and over‑loading may trigger tube slippage, joint failure and scaffolding collapse risks. As key heavy‑duty load‑bearing fitting for tube‑and‑clamp scaffolding, raw‑material quality, hot‑forging craftsmanship, finished‑product inspection and correct on‑site torque management of forged scaffolding coupler directly affect site construction safety and long‑term service life, and constitute essential hardware guarantee for global building, civil infrastructure and industrial‑maintenance projects.
