Half Coupler

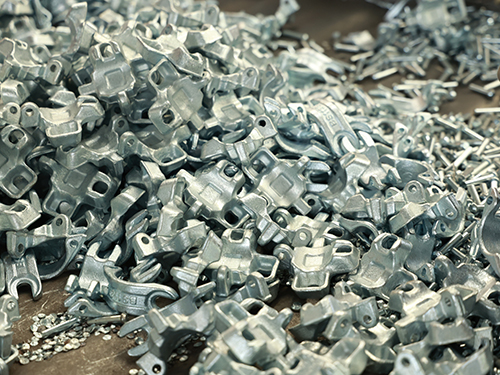

Half Coupler, also known as single coupler, is special‑purpose fitting for tube‑and‑clamp scaffolding systems. Different from double couplers which grip two steel tubes, half coupler features one clamping cavity for single scaffold tube connection. It is commonly used to fasten putlog tubes, guardrail posts, handrails and secondary auxiliary members to main vertical or horizontal scaffold tubes. Each unit consists of drop‑forged coupler body, high‑strength T‑bolt and matching nut. By tightening the nut, it delivers firm friction clamping force to fix auxiliary components, assisting to complete facade scaffolds, safety guardrail systems and partial heavy‑load shoring frameworks without modifying original building structures. Main raw material adopts high‑strength Q235 carbon steel. Material test certificates and batch inspection documents can be supplied for export orders. The most popular specification is 48.3mm, other optional sizes cover 42mm, 60.3mm for different regional market demands. Main manufacturing workflows include hot drop forging, trimming, thread machining, rivet assembling and anti‑corrosion surface finishing. Strict finished‑product inspection is implemented for every batch to eliminate forging cracks, body deformation and thread‑damage defects. Custom logo stamping and seaworthy export‑oriented packaging schemes are supported for bulk orders.

Multiple surface anti‑corrosion treatments are optional for half coupler. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering coupler clamping surfaces and bolt threads. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects under low‑corrosion environment. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term harsh working conditions, as paint layers tend to peel off under frequent mechanical friction and impact. Half coupler transfers loads by friction clamping force between coupler and steel tube. Proper bolt tightening torque prevents tube slippage, stabilizes auxiliary components and guarantees overall scaffolding framework safety.

Core dimensional parameters determine practical mechanical performance of half coupler. Clamping aperture must precisely match outer diameter of mating scaffold tube. Bolt grade and nut dimension directly affect friction‑locking capacity. Specification mismatch will cause local stress concentration and hidden safety hazards. This product complies with mainstream international standards including EN 74‑2, BS 1139 and CE requirements. Third‑party anti‑slip mechanical test reports and material certificates can be supplied upon customer request. Good interchangeability enables flexible assembly adapting to various site layout requirements.

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out for each production batch. Visual examination covers coupler body forging cracks, permanent deformation, thread damage and surface coating peeling. Reused half couplers require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling slip‑resistance tests verify ultimate bearing capacity and anti‑deformation performance. Couplers with body fracture, thread sliding and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished half couplers is strictly forbidden. Unauthorized alteration will destroy original forging mechanical properties and greatly reduce joint safety performance.

Half coupler supports cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Cement mortar, dust and foreign residues attached to coupler clamping openings and bolt threads need thorough cleaning before next application. Impurities trapped in clamping positions will cause jamming and reduce friction locking force, interfering with assembling, clamping and dismounting effect in subsequent service cycles. Finished half couplers shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations including adoption of damaged couplers, insufficient bolt tightening torque and over‑loading may trigger tube slippage, auxiliary component falling and scaffolding safety risks. As dedicated single‑clamp fitting for tube‑and‑clamp scaffolding, raw‑material quality, hot‑forging craftsmanship, finished‑product inspection and correct on‑site torque management of half coupler directly affect site construction safety and long‑term service life, and constitute essential hardware guarantee for global building, civil infrastructure and industrial‑maintenance projects.
