Right Angle Coupler

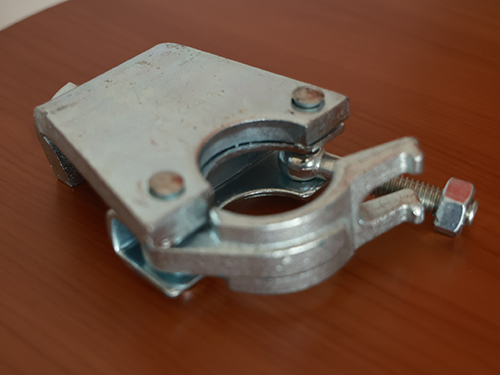

Right Angle Coupler, also named fixed coupler or double coupler, is core connecting component for tube‑and‑clamp scaffolding systems. Main structure consists of drop‑forged coupler body, T‑bolt and high‑strength nut. Each coupler undertakes independent mechanical function, clamping two intersecting scaffold tubes at fixed 90‑degree perpendicular position by bolt tightening, forming rigid cross joints between vertical standards and horizontal ledgers. It is widely applied to erect facade scaffolds, heavy‑load shoring towers and bird‑cage working platforms without modifying original building structures. Main raw material adopts Q235 drop‑forged carbon steel, cast‑iron coupler is not recommended for safety‑critical site usage. Material inspection certificates can be supplied for export orders. Common sizes cover 48.3×48.3mm, 48.3×60.3mm and other mixed‑diameter specifications, suitable for medium‑duty and heavy‑duty construction, petrochemical overhaul and municipal infrastructure projects. Main manufacturing processes include hot drop forging, bolt thread machining, rivet assembly and surface finishing. Every coupler body, bolt and nut shall be strictly inspected to eliminate crack, deformation and thread‑damage defects. Custom‑made dimensions, body marking and export‑oriented packaging schemes are supported according to customer technical drawings. OEM and ODM bulk‑order services are available.

Multiple surface anti‑corrosion treatments are optional for right angle coupler. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering coupler body, clamping surfaces and bolt threads. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, fit for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects under low‑corrosion environment. Painted surface treatment is economical for temporary dry‑condition sites, while paint layers tend to peel off under frequent mechanical friction and impact, not fit for long‑term outdoor service. Right angle coupler transfers structural load by friction clamping force between two steel tubes. Proper bolt tightening torque guarantees anti‑slip performance of tube joints, restrains local displacement risk and ensures overall framework stability of scaffolding systems.

Core dimensional parameters determine practical mechanical performance. Coupler clamping aperture must match outer diameter of mating scaffold tubes precisely. Bolt specification and nut dimension directly affect friction‑locking capacity. Specification mismatch between coupler inner size and tube outer diameter will cause local stress concentration and hidden safety hazards. This product complies with mainstream international standards including EN 74‑1, BS 1139 and CE requirements. Third‑party anti‑slip mechanical test reports and material certificates can be supplied upon customer request. Good interchangeability enables flexible assembly adapting to different site layout requirements.

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out. Visual examination covers coupler body crack, deformation, thread damage and surface coating peeling. Reused right angle couplers require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling slip‑resistance tests verify ultimate bearing capacity and anti‑deformation performance. Couplers with body fracture, thread sliding and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished couplers is strictly forbidden. Unauthorized alteration will destroy original mechanical property and greatly reduce joint safety performance.

Right angle coupler supports cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Cement mortar, dust and foreign residues attached to coupler clamping openings and bolt threads need thorough cleaning before next application. Impurities trapped in clamping positions will cause jamming and reduce friction locking force, interfering with assembling, clamping and dismounting effect in subsequent service cycles. Finished couplers shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations include using damaged couplers, insufficient bolt tightening torque and over‑loading, which may trigger tube slippage, joint failure and scaffolding collapse risks. As essential load‑bearing fitting for tube‑and‑clamp scaffolding, raw‑material quality, drop‑forging craftsmanship, thread‑processing quality, finished‑product inspection and correct on‑site torque management of right angle coupler directly affect site construction safety and long‑term service life, and constitute essential supply guarantee for global building, civil infrastructure and industrial‑maintenance projects.
