Scaffolding Coupler Manufacturer

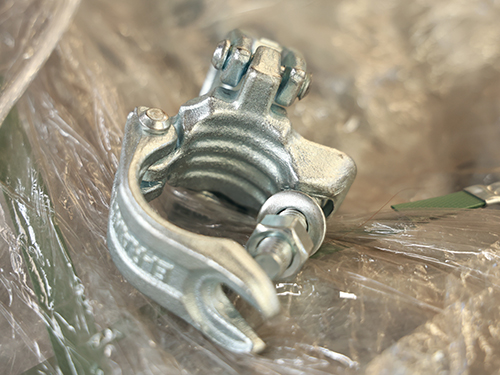

Scaffolding Coupler Manufacturer specializes in full‑cycle production of scaffolding pipe clamps, covering drop‑forged and pressed types including right‑angle coupler, swivel coupler, sleeve coupler, putlog coupler, girder coupler and board‑retaining coupler. Forged couplers own compact metal grain structure and superior impact resistance for heavy‑duty sites, while pressed couplers provide cost‑effective solutions for general construction works. Each coupler assembly consists of coupler body, high‑strength T‑bolt and matching nut. These fittings clamp steel scaffold tubes tightly to form friction‑locked rigid joints, for erecting facade scaffolds, heavy‑load shoring towers and complex industrial surrounding frameworks without modifying original building structures. High‑strength Q235 carbon steel is adopted as main raw material. Material test certificates and batch inspection documents can be provided for export orders. Main available sizes include 48.3×48.3mm, 48.3×60.3mm and mixed‑diameter specifications, complying with European, British and other regional market requirements. Core manufacturing workflows contain hot drop forging or steel plate stamping, trimming, thread machining, rivet assembling and anti‑corrosion surface finishing. Strict in‑line quality inspection is implemented throughout production to eliminate cracks, body distortion and thread‑damage defects. The factory supports custom logo stamping, special dimension adjustment, OEM & ODM processing, flexible MOQ and seaworthy export packaging for worldwide purchasers.

Multiple surface anti‑corrosion treatments are optional for scaffolding couplers. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering coupler bodies, clamping surfaces and bolt threads. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects under low‑corrosion environment. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term harsh working conditions, as paint layers tend to peel off under frequent mechanical friction and impact. Scaffolding couplers transfer structural loads by friction clamping force between steel tubes. Proper bolt tightening torque guarantees anti‑slip performance of tube joints, restrains local displacement risk and ensures overall framework stability of scaffolding systems.

Core dimensional parameters determine practical mechanical performance of scaffolding couplers. Coupler clamping aperture must precisely match outer diameter of mating scaffold tubes. Bolt grade and nut dimension directly influence friction‑locking capacity. Specification mismatch between coupler inner size and tube outer diameter will cause local stress concentration and hidden safety hazards. Factory‑produced couplers comply with mainstream international standards including EN 74‑1, BS 1139 and CE requirements. Third‑party anti‑slip mechanical test reports and material certificates can be supplied upon customer request. Good component interchangeability enables flexible assembly adapting to various site layout requirements.

Prior to factory delivery, visual inspection and sampling mechanical tests shall be carried out for each production batch. Visual examination covers coupler body cracks, permanent deformation, thread damage and surface coating peeling. Reused scaffolding couplers require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated heavy‑load cycles and cannot be judged merely through surface observation. Sampling slip‑resistance tests verify ultimate bearing capacity and anti‑deformation performance. Couplers with body fracture, thread sliding and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished couplers is strictly forbidden. Unauthorized alteration will destroy original mechanical properties and greatly reduce joint safety performance.

Scaffolding couplers support cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Cement mortar, dust and foreign residues attached to coupler clamping openings and bolt threads need thorough cleaning before next application. Impurities trapped in clamping positions will cause jamming and reduce friction locking force, interfering with assembling, clamping and dismounting effect in subsequent service cycles. Finished couplers shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations including adoption of damaged couplers, insufficient bolt tightening torque and over‑loading may trigger tube slippage, joint failure and scaffolding collapse risks. As a professional manufacturing base for scaffolding pipe fittings, raw‑material incoming inspection, forging or stamping craftsmanship, batch‑wise quality control and custom‑order service capability of scaffolding coupler manufacturer directly affect site construction safety and long‑term service life, and constitute stable production‑source supply guarantee for global building, civil infrastructure and industrial‑maintenance projects.
