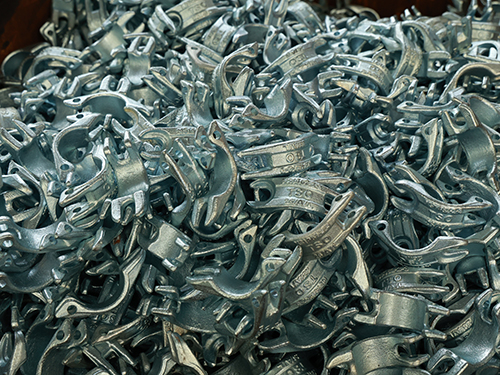

Swivel Coupler

Swivel Coupler is core connecting hardware for tube‑and‑clamp scaffolding systems. Different from right‑angle coupler which fixes tubes at 90 degrees, swivel coupler permits free rotation between two clamping bodies, so steel tubes can be fastened at any intersection angle. It is widely used for installing diagonal braces, inclined supports and complex shaped scaffold frameworks. Each set consists of drop‑forged coupler body, rotating hinge structure, high‑strength T‑bolt and matching nut. After adjusting required angle, operators tighten nuts to produce friction clamping force and lock tube position. These couplers are applied to erect facade scaffolds, heavy‑load shoring towers and special‑shape industrial surrounding frameworks without modifying original building structures. High‑strength Q235 carbon steel is adopted as raw material for forging blanks. Material test certificates and batch inspection documents can be provided for export orders. Common specifications include 48.3×48.3mm, 48.3×60.3mm and mixed‑diameter sizes, complying with European, British and other regional market standards. Main manufacturing workflows include hot drop forging, hinge assembling, thread machining, rivet assembly and anti‑corrosion surface finishing. Every production batch undergoes strict inspection to eliminate forging cracks, hinge jamming, body deformation and thread‑damage defects. Custom logo stamping and seaworthy export‑oriented packaging are supported for bulk orders.

Multiple surface anti‑corrosion treatments are optional for swivel coupler. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering coupler bodies, hinge moving parts, clamping surfaces and bolt threads. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects under low‑corrosion environment. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term harsh working conditions, as paint layers tend to peel off under frequent mechanical friction and impact, and may cause hinge rotation jamming. Swivel coupler transfers structural loads through friction clamping force between steel tubes. Proper bolt tightening torque prevents joint rotation and tube slippage, restrains local displacement risk and ensures overall framework stability of scaffolding systems.

Core dimensional parameters determine practical mechanical performance of swivel coupler. Coupler clamping aperture must precisely match outer diameter of mating scaffold tubes. Bolt grade and nut dimension directly influence friction‑locking capacity. Hinge clearance shall be controlled within reasonable tolerance to guarantee flexible rotation without excessive play. Specification mismatch will cause local stress concentration and hidden safety hazards. This product complies with mainstream international standards including EN 74‑1, BS 1139 and CE requirements. Third‑party anti‑slip mechanical test reports and material certificates can be supplied upon customer request. Good component interchangeability enables flexible assembly adapting to various inclined‑support site layout requirements.

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out for each production batch. Visual examination covers coupler body forging cracks, hinge sticking, permanent deformation, thread damage and surface coating peeling. Reused swivel couplers require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated heavy‑load cycles and cannot be judged merely through surface observation. Sampling slip‑resistance tests verify ultimate bearing capacity and anti‑deformation performance. Couplers with body fracture, hinge failure, thread sliding and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished swivel couplers is strictly forbidden. Unauthorized alteration will destroy original forging mechanical properties and greatly reduce joint safety performance.

Swivel coupler supports cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Cement mortar, dust and foreign residues attached to coupler clamping openings, hinge gaps and bolt threads need thorough cleaning before next application. Impurities trapped in hinge positions will cause rotation jamming and reduce friction locking force, interfering with angle adjustment, clamping and dismounting effect in subsequent service cycles. Finished swivel couplers shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations including adoption of damaged couplers, insufficient bolt tightening torque and over‑loading may trigger joint rotation, tube slippage and scaffolding collapse risks. As key angular‑adjustable load‑bearing fitting for tube‑and‑clamp scaffolding, raw‑material quality, hot‑forging craftsmanship, hinge‑part processing, finished‑product inspection and correct on‑site torque management of swivel coupler directly affect site construction safety and long‑term service life, and constitute essential hardware guarantee for global building, civil infrastructure and industrial‑maintenance projects.
