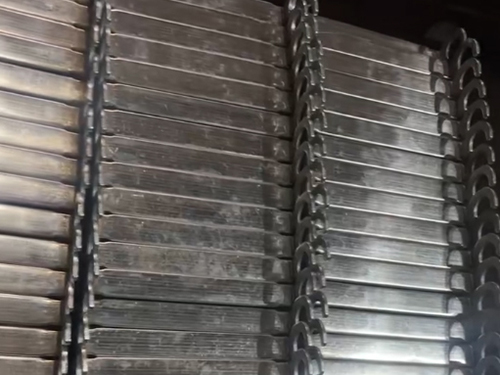

Cuplock Scaffolding

Cuplock Scaffolding is a mature modular temporary steelwork solution widely adopted across global construction industries. Core components include vertical standards with welded bottom cups, sliding top cups, horizontal ledgers with forged blade ends, vertical and diagonal braces, transoms, steel planks, base jacks, U‑heads and stair tower accessories. Each component performs independent mechanical functions. Horizontal ledger blades insert into bottom cup notches and get firmly locked by hammer‑tapping the sliding top cup, achieving four‑way horizontal connection at each node without loose bolts, nuts or special assembly tools. High‑strength carbon structural steel Q235 or Q355 serves as primary raw material for all load‑bearing parts. According to pipe wall thickness and rated bearing capacity, products are divided into light‑duty, medium‑duty and heavy‑duty grades to satisfy different requirements of building facade access, large‑span slab formwork shoring, bridge falsework, industrial plant maintenance, stair towers and loading towers. Main manufacturing processes include precision pipe cutting, automatic stamping, robot full‑circle welding and blade forging. Welding seams between standards and bottom cups are strictly inspected to eliminate incomplete welding, blowholes and crack defects. The node structure features good anti‑bending, anti‑shearing and anti‑torsion performance. Custom‑made dimensions and special accessory configurations are available according to customer project drawings and site working conditions. OEM and ODM services are supported for bulk export orders。

Multiple surface anti‑corrosion treatments are optional for cuplock scaffolding components. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering tube bodies, cup joints, blade ends and welding seams. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects with low corrosion risk. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term wet environments, as paint layers tend to peel off under frequent impact and friction from construction operations. Cuplock scaffolding bears dead weight of platforms, construction materials and live worker loads. It can be assembled into various stable frameworks for high‑altitude working access or heavy‑load formwork shoring, restraining structural deformation and overturning risks, improving site erection efficiency and reducing labor input for construction projects。

Core dimensional parameters determine practical mechanical performance of cuplock scaffolding. Tube outer diameter and wall thickness are critical compression‑load indicators; thicker wall thickness corresponds to higher ultimate compression capacity. Bottom cups are welded on vertical standards at fixed intervals to guarantee consistent node height. Node cup dimension and ledger blade size must keep fully matched to realize reliable self‑locking connection and stable force transmission. Specification mismatch of components will cause local stress concentration and hidden safety hazards. This system complies with mainstream international standards including EN 12810, EN 12811, BS 1139 and relevant CE requirements. Third‑party lab test reports and material certificates can be provided upon request. Good component interchangeability enables flexible layout adaptation for different site spans and elevation requirements。

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out. Visual examination covers tube bending deformation, surface cracks, welding discontinuity, cup‑blade node damage and surface coating peeling. Reused cuplock components require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression and slip tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, node deformation, welding cracks and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished cuplock scaffolding components is strictly forbidden. Unauthorized alteration will change original steel section characteristics and greatly reduce overall structural stability of the whole assembly。

Cuplock scaffolding components support cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Concrete mortar, dust and foreign residues attached to tube surfaces, cup‑blade locking joints and jack threads need thorough cleaning before next application. Impurities trapped in node joints will cause jamming and interfere with assembling, locking and dismounting effect in subsequent service cycles. Finished components shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations include selecting components with insufficient rated load, over‑large erection height without sufficient diagonal bracing, incomplete node locking and applying load exceeding rated capacity. These misoperations may trigger component buckling, system instability and collapse risks. As a highly‑efficient modular temporary‑work solution for modern construction, raw‑material screening, processing craftsmanship, welding quality, finished‑product inspection and component‑matching accuracy of cuplock scaffolding directly affect site construction safety and long‑term service life, and constitute essential supply guarantee for global building, civil infrastructure and industrial‑maintenance projects。
