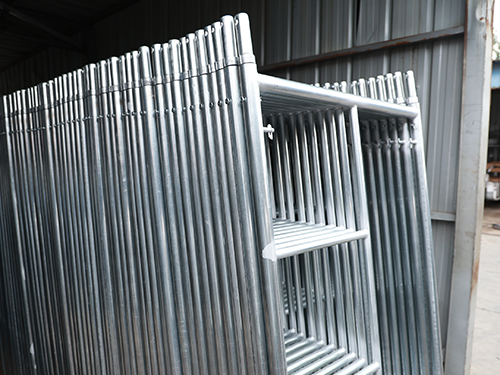

Facade Scaffolding

Facade Scaffolding is widely‑applied pre‑fabricated temporary steel structure specially designed for building exterior operations. It can adopt ringlock, cuplock or frame‑type modular configurations. Core components include vertical standards, horizontal ledgers, diagonal braces, transoms, anti‑slip steel planks, guardrails, toe boards, wall tie connectors, base jacks and integrated access ladders. Each component undertakes independent mechanical functions. Modules are assembled along building outer elevation and firmly fixed to building structure via wall ties, forming continuous multi‑layer working platforms without modifying original building main body. High‑strength carbon structural steel Q235 or Q345 serves as primary raw material for all load‑bearing parts, and material test certificates can be provided for export orders. According to tube wall thickness and load rating, products are divided into light‑duty and medium‑duty grades, suitable for new‑build exterior masonry, curtain wall installation, external wall insulation, painting finishing, old‑building renovation and exterior maintenance projects. Main manufacturing processes include precise pipe cutting, automatic stamping, forging and robot full‑circle welding. Welding seams of connecting nodes are strictly inspected to eliminate incomplete welding, blowholes and crack defects. Custom bay sizes, special‑adapt brackets for irregular facades, special marking and export‑oriented packaging schemes are supported according to customer project drawings. OEM and ODM bulk‑order services are available.

Multiple surface anti‑corrosion treatments are optional for facade scaffolding components. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering tube bodies, connecting nodes and welding seams. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects with low corrosion risk. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term wet environments, as paint layers tend to peel off under frequent construction friction and impact. Facade scaffolding bears dead weight of platforms, construction materials and live worker loads. Wall‑tie connections transfer lateral wind loads to building main structure, restrain frame deflection and overturning risks, and guarantee continuous and safe high‑altitude working conditions along building facades.

Core dimensional parameters determine practical mechanical performance of the whole system. Steel tube outer diameter and wall thickness are critical compression‑load indicators; thicker wall thickness corresponds to higher ultimate compression capacity. Node spacing, bay length and platform width follow standard facade‑scaffold dimensional series. Wall‑tie spacing and connection strength must comply with site wind‑load calculation requirements. Specification mismatch of accessories will cause local stress concentration and hidden safety hazards. This system complies with mainstream international standards including EN 12810, EN 12811, BS 1139 and CE requirements. Third‑party lab test reports and material certificates can be supplied upon customer request. Good component interchangeability enables flexible layout adapting to straight, slightly curved and irregular building facades.

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out. Visual examination covers tube bending deformation, surface cracks, welding discontinuity, node damage and surface coating peeling. Reused facade scaffolding components require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression and slip tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, node deformation, welding cracks and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished facade scaffolding components is strictly forbidden. Unauthorized alteration will change original steel section characteristics and greatly reduce overall structural stability of the whole assembly.

Most facade scaffolding components support cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Concrete mortar, dust and foreign residues attached to tube surfaces, locking node joints and jack threads need thorough cleaning before next application. Impurities trapped in node joints will cause jamming and interfere with assembling, locking and dismounting effect in subsequent service cycles. Finished components shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations include selecting components with insufficient rated load, missing or sparse wall‑tie fixings, insufficient diagonal bracing, incomplete node locking and applying load exceeding rated capacity. These misoperations may trigger component buckling, frame overturning and collapse risks. As a dedicated exterior‑access temporary‑work solution for building industry, raw‑material screening, processing craftsmanship, welding quality, finished‑product inspection and reasonable wall‑tie layout design of facade scaffolding directly affect site construction safety and long‑term service life, and constitute essential supply guarantee for global new‑build and renovation construction projects.
