Modular Scaffolding

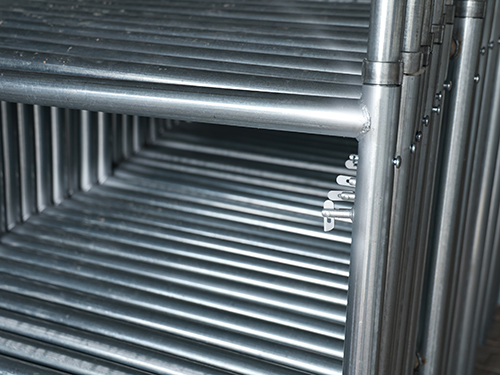

Modular Scaffolding is mainstream prefabricated temporary steel structure widely adopted across global construction industries. Representative product lines include ringlock scaffolding, cuplock scaffolding and kwikstage scaffolding. Core components are vertical standards with pre‑welded connection nodes, horizontal ledgers, diagonal braces, transoms, steel planks, base jacks, U‑heads, guardrail assemblies and stair tower accessories. Each component bears independent mechanical functions. Horizontal members connect to vertical standards via integrated pre‑fabricated nodes, secured by hammer tapping without extra bolts or complex adjustment. Various standard modules can be assembled into working platforms, heavy‑load shoring towers and access stair systems, adapting to different site spans and elevation requirements without modifying original building structures. High‑strength carbon structural steel Q235 or Q345 serves as primary raw material for all load‑bearing parts, and material test certificates can be provided for export orders. According to tube wall thickness and load rating, modular scaffolding is divided into medium‑duty and heavy‑duty grades, suitable for building facade access, large‑span slab formwork shoring, bridge falsework, petrochemical plant maintenance and municipal infrastructure works. Main manufacturing processes include precise steel pipe cutting, automatic stamping, forging and robot full‑circle welding. Welding joints between vertical tubes and connecting nodes are strictly inspected to eliminate incomplete welding, blowholes and crack defects. Custom‑made dimensions, special marking and export‑oriented packaging schemes are supported according to customer project drawings. OEM and ODM bulk‑order services are available.

Multiple surface anti‑corrosion treatments are optional for modular scaffolding components. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering tube bodies, pre‑welded nodes and welding seams. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects with low corrosion risk. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term wet environments, as paint layers tend to peel off under frequent construction friction and impact. Modular scaffolding bears dead weight of platforms, construction materials and live worker loads. Pre‑set nodes ensure reliable force transmission, restrain structural deformation and overturning risks, and greatly improve site erection efficiency while reducing labor input.

Core dimensional parameters determine practical mechanical performance of the whole system. Steel tube outer diameter and wall thickness are critical compression‑load indicators; thicker wall thickness corresponds to higher ultimate compression capacity. Node spacing on vertical standards is fixed in factory production. Node matching size between vertical tubes and horizontal members must keep fully consistent to realize reliable self‑locking connection and stable force transmission. Specification mismatch of accessories will cause local stress concentration and hidden safety hazards. This system complies with mainstream international standards including EN 12810, EN 12811, BS 1139 and CE requirements. Third‑party lab test reports and material certificates can be supplied upon customer request. Good component interchangeability enables flexible layout for different project conditions.

Prior to factory delivery and on‑site deployment, visual inspection and sampling mechanical tests shall be carried out. Visual examination covers tube bending deformation, surface cracks, welding discontinuity, node damage and surface coating peeling. Reused modular scaffolding components require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression and slip tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, node deformation, welding cracks and structural damage must be screened out and prohibited for delivery or site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished modular scaffolding components is strictly forbidden. Unauthorized alteration will change original steel section characteristics and greatly reduce overall structural stability of the whole assembly.

Modular scaffolding components support cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Concrete mortar, dust and foreign residues attached to tube surfaces, locking node joints and jack threads need thorough cleaning before next application. Impurities trapped in node joints will cause jamming and interfere with assembling, locking and dismounting effect in subsequent service cycles. Finished components shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations include selecting components with insufficient rated load, insufficient diagonal bracing for high‑erection‑height frameworks, incomplete node locking and applying load exceeding rated capacity. These misoperations may trigger component buckling, system instability and collapse risks. As an efficient pre‑fabricated temporary‑work solution for modern construction, raw‑material screening, node‑welding craftsmanship, finished‑product inspection and component‑matching accuracy of modular scaffolding directly affect site construction safety and long‑term service life, and constitute essential supply guarantee for global building, civil infrastructure and industrial‑maintenance projects。
