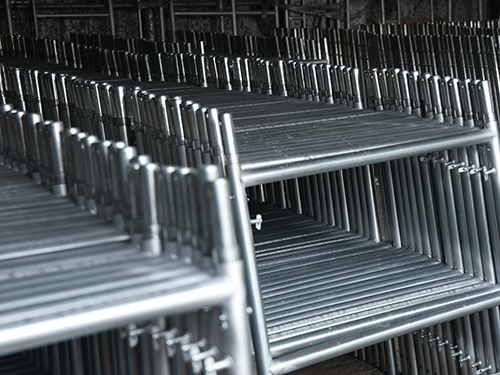

Scaffolding Structure

Scaffolding Structure is the overall load‑carrying framework composed of main vertical members, horizontal members, bracing systems, platform components, adjusting jacks and wall‑tie connections. Common structural forms include ringlock, cuplock, frame‑type and tube‑and‑clamp configurations. Core parts contain vertical standards, horizontal ledgers, diagonal braces, transoms, steel planks, base jacks, U‑heads, couplers, wall ties and guardrail assemblies. Each component performs defined mechanical functions. Vertical standards undertake main vertical compression loads. Horizontal ledgers distribute loads and form platform frames. Diagonal braces resist lateral displacement and enhance overall rigidity. Wall ties anchor the whole structure to building main body against wind overturning. All parts cooperate to form complete spatial system without altering original building structures. High‑strength carbon structural steel Q235 or Q345 is adopted as primary raw material for load‑bearing components, and material inspection certificates can be provided for export orders. According to section thickness and structural layout, scaffolding structure can be built into light‑duty facade working scaffolds, medium‑duty access frameworks and heavy‑duty shoring towers, applicable to building construction, renovation, bridge falsework, petrochemical overhaul and municipal infrastructure works. Main manufacturing processes include steel pipe cutting, stamping, forging and robot full‑circle welding. Welding joints of key force‑transfer nodes are strictly inspected to remove incomplete welding, blowholes and crack defects. Custom structural layout, special‑size components and export‑oriented packaging are supported according to customer engineering drawings. OEM and ODM bulk‑order services are available.

Multiple surface anti‑corrosion treatments are optional for scaffolding structure components. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering tube bodies, connecting nodes and welding seams. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore construction projects with high cyclic‑turnover frequency. Electro‑galvanizing provides thin zinc coating for short‑cycle projects with low corrosion risk. Powder coating and liquid paint coating are economical alternatives for temporary dry‑condition construction sites. Painted surfaces are not recommended for long‑term wet environments, as paint layers tend to peel off under frequent construction friction and impact. Scaffolding structure bears combined loads including self‑weight of framework, platform dead weight, construction material weight, live worker loads and lateral wind loads. It transfers vertical compression loads down to foundation through base jacks, and transmits horizontal wind force to building main body via wall ties, restraining structural deformation and overturning risks to guarantee safe on‑site operation.

Core dimensional parameters determine practical mechanical performance of scaffolding structure. Tube outer diameter and wall thickness are critical compression‑load indicators; thicker wall thickness corresponds to higher ultimate compression capacity. Bay width, lift height, brace spacing and wall‑tie layout directly influence overall rigidity and stability. Connection dimension between vertical and horizontal members must keep fully consistent to realize reliable force transmission. Specification mismatch of accessories will cause local stress concentration and hidden safety hazards. The structure complies with mainstream international standards including EN 12810, EN 12811, BS 1139, AS/NZS 1576 and CE requirements. Third‑party lab mechanical test reports and material certificates can be supplied upon customer request. Standardized component interchangeability allows flexible structural adjustment adapting to different site span and elevation requirements.

Prior to factory delivery and on‑site erection, visual inspection and sampling mechanical tests shall be carried out. Visual examination covers tube bending deformation, surface cracks, welding discontinuity, node damage and surface coating peeling. Reused components for scaffolding structure require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated combined‑load cycles and cannot be judged merely through surface observation. Sampling compression, slip and lateral stability tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, node distortion, welding cracks and structural damage must be screened out and prohibited for delivery or site assembly. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished components is strictly forbidden. Unauthorized alteration will change original steel section characteristics and greatly reduce overall structural stability of the whole scaffolding system.

Most components of scaffolding structure support cyclic repeated use. After project completion, dismantling work shall follow standard construction sequence. Concrete mortar, dust and foreign residues attached to tube surfaces, connecting nodes and jack threads need thorough cleaning before next application. Impurities trapped in joint positions will cause jamming and interfere with assembling, locking and dismounting effect in subsequent service cycles. Finished components shall be stored in dry and ventilated warehouse areas, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp ground. Improper on‑site operations include adopting components with insufficient rated load, insufficient diagonal bracing, sparse or missing wall‑tie connections, incomplete node locking and applying load exceeding rated capacity. These misoperations may trigger local component failure, overall frame instability and collapse risks. As the core load‑bearing temporary‑work system for construction industry, raw‑material quality, node‑processing craftsmanship, finished‑product inspection and reasonable structural layout design of scaffolding structure directly affect site construction safety and long‑term service life, and constitute essential supply guarantee for global building, civil infrastructure and industrial‑maintenance projects.
