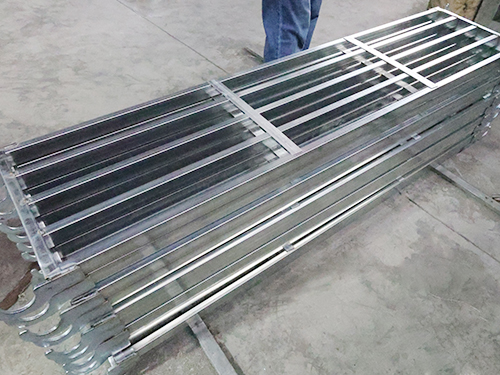

Temporary Scaffolding System

Temporary Scaffolding System is a comprehensive temporary steel structure widely applied in cast‑in‑place construction, building renovation, bridge falsework and industrial overhaul projects. It covers multiple mainstream series including ringlock scaffolding, cuplock scaffolding, frame scaffolding, kwikstage scaffolding and matched supporting accessories. Core components contain vertical standards, horizontal ledgers, diagonal braces, transoms, steel planks, base jacks, U‑heads, couplers, stair assemblies and guardrail parts. Each component bears independent mechanical functions. Different modules can be freely combined to build working platforms, heavy‑load shoring towers and access stair towers without modifying original building structures. High‑strength carbon structural steel Q235 and Q345 are adopted as main raw materials for all load‑bearing components, and material certificates can be provided for export orders. According to pipe wall thickness and rated load capacity, products are divided into light‑duty, medium‑duty and heavy‑duty grades to fit facade maintenance, high‑rise building construction, large‑span formwork support, petrochemical plant maintenance and municipal infrastructure works. Main manufacturing processes include pipe cutting, automatic stamping, forging and robot full‑circle welding. Welding joints are strictly inspected to remove incomplete welding, blowholes and crack defects. Modular node design realizes quick assembly mostly by hammer operation, reducing site labor cost and shortening project schedule. Custom dimensions, special marking and tailored packaging can be produced according to customer technical drawings. OEM and ODM export services are supported.

Multiple anti‑corrosion surface treatments are available for temporary scaffolding system components. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering pipe bodies, connecting nodes and welding seams. This treatment delivers excellent resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and offshore projects with high turnover frequency. Electro‑galvanizing offers thin zinc coating for short‑cycle projects with low corrosion risk. Powder coating and liquid paint are cost‑effective options for temporary dry‑condition sites. Painted components are not suitable for long‑term wet environments because paint layers easily peel off under construction friction and impact. Temporary scaffolding system bears dead weight of platforms, construction materials and live working loads. It serves for high‑altitude operation access or heavy‑duty formwork shoring, restrains structural deformation and overturning risks, and ensures construction safety for various on‑site operations.

Core dimensional parameters determine practical mechanical performance of the whole system. Tube outer diameter and wall thickness are critical compression‑load indicators; thicker wall thickness brings higher ultimate compression capacity. Node spacing and connection size of vertical and horizontal members must keep fully consistent to achieve stable locking and reliable force transmission. Mismatched accessories will cause local stress concentration and potential safety hazards. The system meets mainstream international standards such as EN 12810, EN 12811, BS 1139, AS/NZS 1576 and OSHA specifications. Third‑party test reports and inspection documents can be supplied upon request. Good interchangeability allows flexible layout adapting to different site span and elevation requirements.

Before factory delivery and site application, visual inspection and sampling mechanical tests shall be implemented. Visual check covers tube bending deformation, surface cracks, welding discontinuity, node damage and coating peeling. Reused temporary scaffolding parts need stricter inspection standards. Even with intact appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged only by surface observation. Sampling compression and slip tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, node distortion, welding cracks and structural damage must be eliminated and forbidden for use. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished components is strictly prohibited. Unauthorized alteration will change steel section characteristics and greatly reduce overall structural stability.

Most components of temporary scaffolding system support cyclic repeated usage. After project completion, dismantling shall follow standard construction procedures. Concrete mortar, dust and foreign residues attached to pipe surfaces, connecting nodes and jack threads need thorough cleaning before next circulation. Impurities stuck in joints will cause jamming and affect assembling, locking and dismounting effect in later service cycles. Finished parts shall be stored in dry and ventilated warehouse areas, sorted and stacked by specifications, avoiding long‑term rain soaking and direct contact with damp ground. Improper site operations include adopting components with insufficient rated load, insufficient diagonal bracing for high erection height, incomplete node locking and over‑loading. These wrong operations may lead to component buckling, system instability and collapse risks. As a vital temporary‑work solution for global construction industry, raw‑material quality, processing craftsmanship, welding performance, finished‑product inspection and component matching accuracy of temporary scaffolding system directly influence construction safety and service life, and provide essential supply guarantee for building, civil infrastructure and industrial engineering projects.
