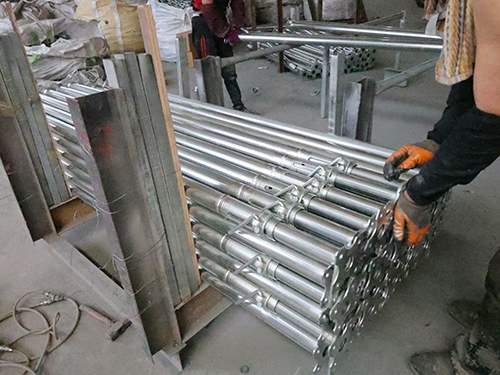

Adjustable Steel Support

Adjustable Steel Support is an independent load‑bearing metal fitting widely adopted in cast‑in‑place concrete formwork shoring systems. It is assembled by outer steel tube, inner telescopic tube, height adjusting nut, safety locking pin, top bearing plate and bottom base plate. Each structural part undertakes separate mechanical functions. The whole assembly can realize vertical load‑bearing and continuous height adjustment independently without altering main formwork panels. High‑strength carbon steel such as Q235 and Q355 serves as primary raw material. According to pipe diameter, tube wall thickness and rated compression capacity, products are classified into light‑duty, medium‑duty and heavy‑duty grades to satisfy different load and elevation requirements of construction sites. Main manufacturing processes include pipe cutting, stamping and full‑circle welding. Thread sections are processed by thread rolling technology, improving thread‑tooth surface hardness and wear resistance to adapt to frequent height adjustment and cyclic turnover. Welding joints between pipe body and top‑bottom plates are strictly inspected to eliminate incomplete welding and crack defects. Reinforced stamped top and bottom plates disperse vertical pressure and improve placement stability on construction floors. Matching U‑head attachments can be installed to hold formwork secondary beams. Custom dimension options are available for special project working conditions.

Multiple surface anti‑corrosion treatments adapt to various construction environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering pipe body, threaded sections and welding seams. This coating offers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and underground construction projects. Powder coating and spray painting are cost‑effective alternatives for short‑cycle dry‑condition sites. Painted supports are not suitable for long‑term wet environments, as paint layers tend to peel off under friction and concrete impact. Adjustable steel support bears dead weight of formwork, fresh concrete and construction live loads. It is mainly used for temporary shoring of slab and beam formwork, restrains formwork settlement and deformation, and ensures elevation accuracy of concrete components before concrete reaches designed strength.

Core dimensional parameters determine practical mechanical performance. Outer and inner tube diameter together with wall thickness are critical compression‑load indicators, thicker wall thickness corresponds to higher ultimate compression capacity. Adjustable height range shall match actual site elevation demands. Thread specification of adjusting nut must be fully consistent with support thread to guarantee smooth adjustment and reliable locking. The size of top and bottom plates shall meet pressure dispersion requirements. Improper specification selection will result in local stress concentration and potential safety risks. This component features good compatibility with timber beams, steel beams, timber formwork and steel formwork assemblies. Dimensional tolerances comply with corresponding international technical specifications to realize spare‑part interchangeability during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be implemented as independent inspection workflows. Visual examination covers pipe body bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Reusable supports require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Supports with permanent bending, thread slipping and structural cracks must be screened out and prohibited from site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished adjustable steel support is forbidden. Unauthorized alteration will change original steel section characteristics and greatly reduce compression safety performance.

Adjustable steel support is designed for cyclic repeated use. After concrete curing and formwork dismantling, supports shall be removed following standard construction sequence. Concrete mortar, dust and foreign residues attached to pipe surface, threaded sections and locking positions need thorough cleaning before next application. Impurities trapped in thread gaps will cause nut jamming and interfere with normal adjustment and locking effect in subsequent service cycles. Finished supports shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include selecting supports with insufficient rated load, over‑extending telescopic stroke, omitting safety locking pin installation and applying load exceeding rated capacity. These misoperations may trigger support buckling, component failure and formwork collapse hazards. As a core adjustable vertical‑bearing unit for formwork systems, raw‑material quality, processing craftsmanship and complete condition of adjustable steel support directly influence construction safety and concrete forming quality, and constitute essential preconditions for cast‑in‑place slab and beam construction.
