Q195 steel prop

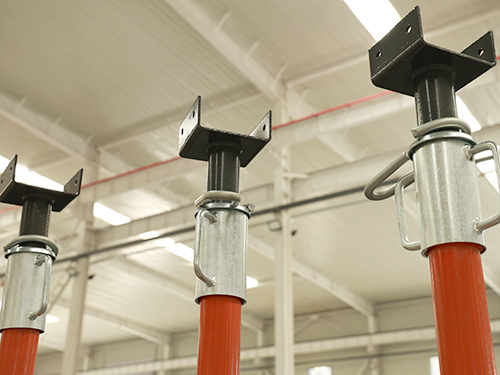

Q195 steel prop, also known as adjustable acrow prop, is a common telescopic shoring component for formwork and scaffolding systems. It consists of outer tube, inner tube, prop nut, safety pin, top plate and base plate. Fabricated from Q195 low‑carbon mild steel with yield strength ≥195MPa, this material features good ductility, fine weldability and competitive cost, suitable for medium‑light‑load construction sites rather than extreme heavy‑duty shoring conditions. Height adjustment is realized by telescoping inner tube inside outer tube, secured by threaded sleeve nut and safety pin. It can be fitted with square base plate, flower‑type base plate, U‑head or fork head according to site requirements.

Q195 steel prop supports cyclic repeated use under rated load conditions. After project completion, dismantling shall follow standard construction procedures. Cement mortar, dust and foreign residues attached to pipe surface, thread sections and pin holes need thorough cleaning before re‑use. Impurities trapped in thread and adjustment positions will cause jamming and affect height adjustment and locking performance in subsequent service cycles. Finished Q195 steel props shall be stored in dry and ventilated warehouse areas, sorted by specification grade, kept away from rain soaking and damp ground. Improper on‑site operations including adoption of deformed props, over‑loading and application for heavy‑duty high‑risk shoring may trigger tube buckling and structural collapse risks. As economical adjustable temporary‑shoring post made of Q195 mild‑steel material for general‑purpose construction, raw‑material quality, welding workmanship, wall‑thickness control and correct‑scenario application of Q195 steel prop directly influence site construction safety and service life, delivering cost‑effective vertical‑support solution for global building, civil‑engineering and general‑renovation projects。
