Steel Shoring System

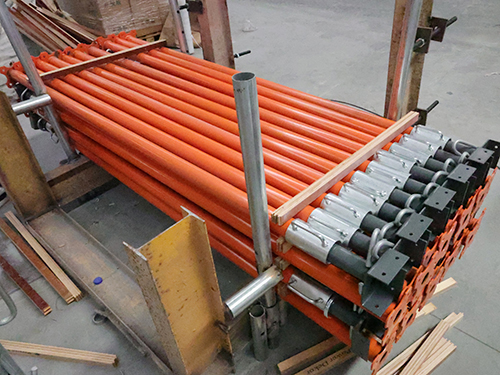

Steel Shoring System is a complete modular metal shoring solution widely applied in cast‑in‑place concrete construction for slabs, beams and large‑span structures. The system consists of adjustable steel shores, vertical frames, horizontal cross braces, diagonal bracing, connecting pins, base plates and top load heads. Each component undertakes independent mechanical functions. All parts cooperate to realize vertical load‑bearing and horizontal anti‑sway performance without modifying main formwork panels. High‑strength carbon steel such as Q235 and Q355 serves as primary raw material. Adjustable steel shores act as core load‑bearing units, assembled by outer steel tube, inner telescopic tube, adjusting nut and safety locking pin to achieve continuous height adjustment for different site elevations. Frame‑type modules are connected by horizontal and diagonal braces to form integral stable frameworks, effectively resisting horizontal displacement and preventing system overturning. U‑head top adapters transmit loads to secondary formwork beams. Base plates evenly disperse pressure onto ground or floor surfaces. According to tube wall thickness, pipe diameter and rated compression capacity, the system is classified into light‑duty, medium‑duty and heavy‑duty grades for different span and load requirements. Main processing technologies include pipe cutting, stamping, full‑circle welding and thread rolling. Thread rolling improves thread‑tooth hardness and anti‑wear performance to adapt to frequent height adjustment and cyclic turnover. Welding quality is strictly checked to eliminate incomplete welding and crack defects.

Multiple surface anti‑corrosion treatments are available for metal components of steel shoring system. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering tube bodies, threaded sections and welding seams. This coating provides stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and underground construction projects. Powder coating and spray painting are alternative economical options for short‑cycle dry‑condition construction sites. Painted surfaces are not fit for long‑term wet environments, as paint layers tend to peel off under friction and concrete impact. The steel shoring system bears dead weight of formwork, fresh concrete and construction live loads. It restrains formwork settlement, bending and collapse risks, and guarantees elevation accuracy and flatness of concrete structural members.

Core dimensional parameters determine practical mechanical performance of the whole system. Tube diameter and wall thickness are critical compression‑load indicators, thicker wall thickness corresponds to higher ultimate compression capacity. Adjustable height range shall match actual floor elevation of construction sites. Thread specifications of adjusting nuts must be consistent with shore threads to ensure smooth adjustment and reliable locking. Spacing of vertical supports and layout of bracing components shall comply with load calculation results. Excessive support spacing or insufficient bracing will cause local stress concentration and potential safety hazards. This system is highly compatible with timber beams, steel beams, timber formwork and steel formwork assemblies. Dimensional tolerances of all components comply with corresponding international technical specifications to realize good interchangeability and stable force transmission during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be carried out for the steel shoring system. Visual examination covers tube body bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Reused components require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping and structural cracks must be screened out and prohibited from site usage. Secondary destructive modification such as arbitrary cutting, welding and hole‑drilling on finished components is forbidden. Unauthorized alteration will change original steel section characteristics and greatly reduce compression stability of the whole shoring system.

Components of steel shoring system support cyclic repeated use. After concrete reaches sufficient strength, dismantling work shall follow standard construction sequence. Concrete mortar, dust and foreign residues attached to tube surfaces, threaded sections and connecting joints need thorough cleaning before next application. Impurities trapped in thread gaps or connection positions will cause jamming and interfere with normal adjustment and locking effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include selecting insufficient rated load grade, over‑extending telescopic stroke, omitting cross or diagonal bracing, ignoring safety pin installation and applying load exceeding rated capacity. These misoperations may trigger component buckling, system overturning and formwork collapse risks. As a key modular temporary shoring solution for concrete construction, raw‑material quality, processing craftsmanship, component matching and reasonable layout of steel shoring system directly determine construction safety and concrete forming quality, and constitute essential preconditions for cast‑in‑place large‑span slab and beam construction.
