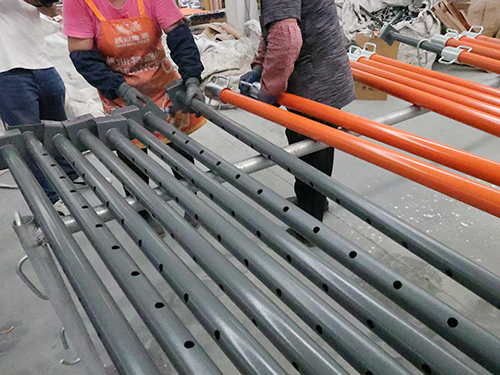

Telescopic Steel Prop

Telescopic Steel Prop is an independent load‑bearing metal component widely used in cast‑in‑place concrete formwork shoring systems. It is assembled by outer steel tube, inner telescopic tube, height adjusting nut, safety locking pin, top bearing plate and bottom base plate. Each structural part performs separate mechanical functions. The whole prop can complete vertical load‑bearing and continuous height adjustment independently without modifying formwork main panels. High‑strength carbon steel such as Q235 and Q355 is adopted as primary raw material. According to pipe diameter, tube wall thickness and rated compression load, products are divided into light‑duty, medium‑duty and heavy‑duty grades to satisfy different span and load requirements of construction sites. Pipe cutting, stamping and welding are main forming processes. Thread sections are processed by thread rolling technology, improving thread‑tooth surface hardness and anti‑wear performance for frequent height adjustment and cyclic turnover usage. Welding between tube body and top‑bottom plates shall maintain full‑circle continuity to eliminate welding defects. Top and bottom plates adopt reinforced stamping structure to disperse vertical pressure and improve placement stability on uneven ground. The product can match U‑head accessories to support formwork secondary beams. Customized dimensions are available for special project elevation requirements.

Multiple surface anti‑corrosion treatments adapt to diverse construction environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering tube body, thread sections and welding seams. This coating delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and underground construction projects. Powder coating and spray painting are economical alternatives for short‑cycle dry‑condition construction sites. Painted products are not suitable for frequent wet working conditions, as paint layers tend to peel off under friction and concrete impact. Telescopic steel prop bears dead weight of formwork, fresh concrete and construction live loads. It supports slab and beam formwork, restrains formwork settlement and deformation, and guarantees elevation accuracy of concrete components before concrete hardens to reach design strength.

Core dimensional parameters determine practical mechanical performance. Outer and inner tube diameter and wall thickness are critical compression‑load indicators, thicker wall thickness corresponds to higher ultimate compression capacity. Adjustable height range shall match actual site elevation demand. Thread specification of adjusting nut must be fully consistent with prop thread to ensure smooth adjustment and reliable locking. Top and bottom plate size shall meet pressure dispersion requirements. Improper specification selection will cause local stress concentration and bring hidden safety hazards. This component is compatible with timber beams, steel beams, timber formwork and steel formwork assemblies. Dimensional tolerances comply with corresponding international technical specifications to guarantee spare‑part interchangeability during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be implemented as independent inspection workflows. Visual examination covers tube body bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Reused props require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling compression tests verify ultimate bearing capacity and anti‑deformation performance. Props with permanent bending, thread slipping and structural cracks must be screened out and scrapped, and shall not be mixed into construction usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished telescopic steel prop is prohibited. Unauthorized alteration will change original steel section characteristics and greatly reduce compression safety performance.

Telescopic steel prop is designed for cyclic repeated use. After concrete curing and formwork dismantling, props shall be removed following standard construction sequence. Concrete mortar, dust and foreign residues attached to tube body, threaded sections and locking positions need thorough cleaning before next application. Impurities trapped in thread gaps will cause nut jamming and interfere with normal adjustment and locking effect in subsequent service cycles. Finished props shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include selecting prop with insufficient rated load, over‑extending telescopic stroke, omitting safety locking pin installation and applying load exceeding rated capacity. These misoperations may trigger prop buckling, component failure and formwork collapse risks. As a core adjustable vertical‑support unit for formwork systems, raw‑material quality, processing craft and complete condition of telescopic steel prop directly affect construction safety and concrete forming quality, and constitute essential preconditions for slab and beam cast‑in‑place construction.
