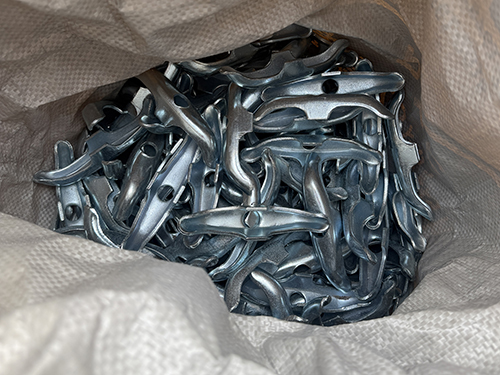

Concrete Formwork Tie System

Concrete Formwork Tie System is a complete set of coordinated hardware assemblies widely deployed for cast‑in‑place concrete wall formwork construction. The system consists of main tie rods, fastening nuts, pressure bearing plates, positioning cones, plastic sleeves and optional welded water‑stop plates. Each component bears independent mechanical functions. Combined accessories cooperate with formwork panels to achieve formwork tensioning, wall‑thickness positioning and seepage‑blocking without modifying main formwork structures. High‑strength carbon steel is adopted as primary raw material. According to service conditions, the system falls into ordinary formwork tie system and waterproof formwork tie system. Ordinary version fits general non‑waterproof wall structures. Waterproof version is equipped with water‑stop plate welded on the middle embedded rod to cut off capillary water penetration paths through wall bodies. Two structural styles are available: integral full‑thread type and segmented assembled type. Integral tie rod is fully embedded in concrete for single‑time application. Assembled tie rod comprises permanent embedded middle segment and detachable outer threaded sections. Outer threaded segments can be disassembled and recycled after concrete curing. Thread sections are processed by thread rolling technology, improving thread‑tooth hardness and wear resistance to adapt to frequent disassembly and cyclic turnover. Fastening nuts are manufactured by forging process to maintain stable clamping force under lateral expanding pressure of fresh concrete. Welding quality of water‑stop plates is strictly controlled to satisfy anti‑seepage requirements of basement, water tank and hydraulic‑engineering structures. Positioning cones and plastic sleeves realize accurate wall‑thickness control and reduce subsequent surface repair workload of concrete walls. Custom dimensions can be produced based on project drawing requirements.

Multiple surface anti‑corrosion treatments are available for metal components of concrete formwork tie system. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering rod bodies, thread teeth and welding seams. This coating provides stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and underground construction projects. Electro‑galvanizing creates relatively thin zinc layer on steel surface, applicable for short‑cycle construction projects with low corrosion risk. Black oxide finish is adopted for temporary dry‑condition working sites without strict anti‑corrosion demands. Paint coating is rarely applied on threaded parts, for paint layers tend to peel off under thread friction and concrete impact. The whole system bears lateral hydrostatic force generated during concrete pouring, fixes clearance between opposite formwork panels, restrains formwork bulging, shifting and deformation, and guarantees dimensional stability of cast‑in‑place concrete wall components.

Core dimensional parameters directly determine practical mechanical performance of the whole system. Rod body diameter is a critical tensile‑load indicator, larger diameter corresponds to higher ultimate tensile capacity. Effective overall length shall match designed wall thickness plus formwork panel thickness and on‑site operating space. Thread specifications of tie rods and nuts must be fully consistent to prevent poor meshing, insufficient clamping force and component slipping. For waterproof‑type assemblies, size and welding quality of water‑stop plates shall meet anti‑seepage standards under designed water head. Specification mismatch of positioning accessories will lead to concrete dimension deviation. This system is highly compatible with timber formwork, steel formwork and various combined formwork assemblies. Dimensional tolerances of all components comply with corresponding international technical specifications to ensure reliable fitting and coordinated stress transmission during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be implemented for concrete formwork tie system. Visual examination covers rod‑body bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Recycled outer threaded segments require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling tensile tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping, incomplete welding and structural cracks must be screened out and prohibited for site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished system components is forbidden. Unauthorized alteration will change original steel section characteristics and weaken tensile performance or waterproof reliability of the whole assembly.

Part of components in concrete formwork tie system support cyclic turnover usage. After concrete curing and formwork dismantling, detachable outer threaded segments, reusable nuts and pressure‑bearing accessories shall be disassembled following standard construction sequence. Concrete mortar, dust and foreign residues attached to thread grooves and fitting surfaces need thorough cleaning before next application. Impurities trapped in matching joints will cause jamming and interfere with normal assembling and clamping effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include mixed use of mismatched accessories, insufficient tightening of nuts, adoption of damaged parts and applying load exceeding rated capacity. These misoperations may trigger formwork bulging, component fracture, concrete dimension deviation or wall‑body water seepage risks. As a core tension‑fastening solution for concrete formwork engineering, raw‑material quality, processing craftsmanship, component‑matching accuracy and welding performance of concrete formwork tie system directly determine formwork safety, concrete forming quality and long‑term anti‑leakage performance of wall structures, and constitute essential preconditions for cast‑in‑place concrete wall construction.
