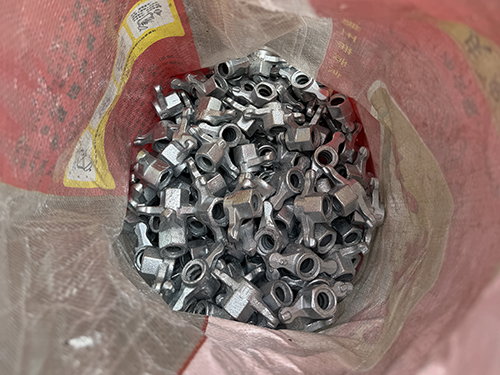

Form Tie System

Form Tie System is a standardized set of formwork fastening assemblies widely used in cast‑in‑place concrete wall construction. The system is composed of main tie rods, fastening nuts, pressure bearing plates, positioning cones, plastic sleeves and optional water‑stop plates. Each component performs independent mechanical functions. All accessories cooperate to finish formwork tensioning, wall‑thickness positioning and waterproof sealing without changing main formwork panels. High‑strength carbon steel is adopted as primary raw material. According to application scenarios, it is divided into ordinary form tie system and waterproof form tie system. Ordinary form tie system is suitable for common non‑waterproof wall structures. Waterproof form tie system is equipped with fully welded water‑stop plate on embedded middle rod to block capillary water seepage through wall penetration points. Two structural forms are available: integral one‑piece type and segmented assembled type. Integral tie rod is wholly embedded in concrete for one‑time application. Assembled tie rod contains permanent embedded middle section and detachable outer threaded segments, and outer segments can be disassembled and recycled after concrete curing. Thread sections are processed by thread rolling technology, improving thread‑tooth hardness and wear resistance to adapt to repeated assembly and disassembly cycles. Fastening nuts are produced by forging process to keep stable clamping force under lateral pressure from fresh concrete. Welding quality of water‑stop plates shall be strictly controlled to ensure reliable waterproof performance for underground and hydraulic‑engineering structures. Positioning cones and plastic sleeves precisely control wall‑thickness dimension and reduce subsequent surface repair workload of concrete walls. Custom‑made sizes are supported according to project technical drawings.

Multiple surface anti‑corrosion treatments are available for metal components of form tie system. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering rod bodies, thread teeth and welding seams. This coating provides stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and underground construction projects. Electro‑galvanizing generates relatively thin zinc layer on steel surface, applicable for short‑cycle construction projects with low corrosion risk. Black oxide finish applies to temporary dry‑condition works without high anti‑corrosion requirements. Paint coating is seldom used for threaded parts, since paint layers tend to peel off under thread friction and concrete impact. The whole system bears expanding lateral force generated during concrete pouring, fixes clearance between opposite formwork panels, restrains formwork bulging and displacement, and guarantees dimension stability of cast‑in‑place concrete walls.

Core dimensional parameters determine practical mechanical performance of the whole system. Rod body diameter is a critical tensile‑load indicator, larger diameter corresponds to higher ultimate tensile capacity. Effective tie rod length shall match designed wall thickness plus formwork panel thickness and on‑site operating space. Thread specifications of tie rods and nuts must be fully consistent to avoid poor meshing, insufficient clamping force and component slipping. For waterproof type, dimension and welding quality of water‑stop plates shall meet anti‑seepage requirements under designed water head. Specification mismatch of positioning accessories will cause concrete dimension deviation. This system is compatible with timber formwork, steel formwork and various combined formwork assemblies. Dimensional tolerances of all components comply with corresponding international technical specifications to ensure reliable matching and coordinated stress transmission during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be carried out for form tie system. Visual examination covers rod bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Recycled outer threaded segments require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling tensile tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping, incomplete welding and structural cracks must be screened out and prohibited for site usage. Secondary destructive modification such as arbitrary cutting, welding and hole‑drilling on finished system components is forbidden. Unauthorized alteration will change original steel section characteristics and weaken tensile performance or waterproof reliability of the whole assembly.

Part of components in form tie system support cyclic turnover use. After concrete curing and formwork dismantling, detachable outer threaded segments, reusable nuts and pressure‑bearing accessories shall be disassembled in standard sequence. Concrete mortar, dust and foreign residues attached to thread grooves and fitting surfaces need thorough cleaning before next application. Impurities trapped in matching joints will cause jamming and interfere with normal assembling and clamping effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include mixed use of mismatched accessories, insufficient tightening of nuts, adoption of damaged parts and over‑limit load application. These misoperations may trigger formwork bulging, component fracture, concrete dimension deviation or wall‑body water seepage risks. As a vital tension‑fastening solution for formwork engineering, raw‑material quality, processing craftsmanship, component matching accuracy and welding quality of form tie system directly determine formwork safety, concrete forming quality and long‑term anti‑leakage performance of wall structures, and constitute essential preconditions for cast‑in‑place concrete wall construction.
