Formwork Tie Rod System

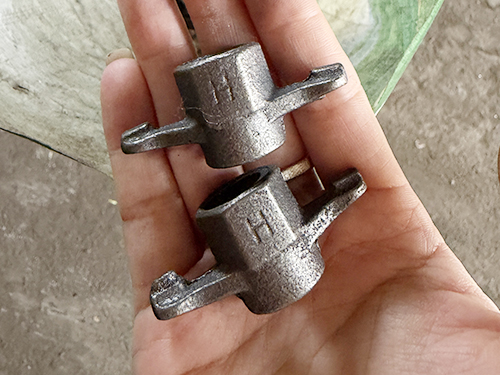

Formwork Tie Rod System is a standardized integrated fastening assembly widely applied for cast‑in‑place concrete wall formwork. The system consists of tie rods, fastening nuts, pressure bearing plates, positioning cones, plastic sleeves and optional water‑stop plates for waterproof structures. Each component performs independent mechanical functions. All accessories cooperate with formwork panels to realize formwork tensioning, wall‑thickness positioning and seepage prevention without modifying main formwork structures. High‑strength carbon steel is adopted as primary raw material. It is divided into ordinary formwork tie rod system and waterproof formwork tie rod system according to project requirements. Ordinary type suits general non‑waterproof wall structures. Waterproof type adopts water‑stop plate fully welded on the middle rod body to block water penetration channels along tie rod penetration positions. Two main structural styles are integral one‑piece type and segmented assembled type. Integral tie rod penetrates the whole wall and is permanently embedded in concrete for one‑time use. Assembled tie rod includes fixed embedded middle section and detachable outer threaded segments, and outer threaded segments can be unscrewed and recycled after concrete curing. Thread sections are processed by thread rolling technology, improving thread‑tooth hardness and wear resistance to adapt to frequent assembly, disassembly and cyclic turnover. Fastening nuts are manufactured by forging process to maintain stable clamping force under lateral concrete pressure. Welding quality of water‑stop plates is strictly checked to guarantee anti‑seepage performance for basements, water tanks and hydraulic‑engineering structures. Positioning cones and plastic sleeves ensure precise wall‑thickness control and reduce post‑construction surface repair workload. Custom‑made dimensions are supported according to project technical drawings.

Multiple surface anti‑corrosion treatments are available for metal components of formwork tie rod system. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering rod bodies, thread sections and welding seams. This treatment delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, coastal and underground construction projects. Electro‑galvanizing provides thin zinc coating for short‑cycle projects with low corrosion risk. Black oxide finish fits temporary dry‑condition construction sites without high anti‑corrosion demands. Paint coating is seldom used on threaded parts because paint layers tend to peel off under thread friction and concrete impact. Formwork tie rod system bears lateral expanding force generated during concrete pouring, fixes clearance between opposite formwork panels, restrains formwork bulging, shifting and deformation, and ensures dimensional stability of cast‑in‑place concrete wall members.

Core dimensional parameters determine practical mechanical performance of the whole system. Rod body diameter is a critical tensile‑load indicator, larger diameter corresponds to higher ultimate tensile capacity. Effective total length shall match designed wall thickness, formwork panel thickness and on‑site operating space. Thread specifications of tie rods and nuts must remain fully consistent to avoid poor meshing, insufficient clamping force and component slipping. For waterproof assemblies, dimension and welding quality of water‑stop plates shall satisfy anti‑seepage requirements under designed water head. Specification mismatch of positioning accessories will lead to concrete dimension deviation. This system is highly compatible with timber formwork, steel formwork and various combined formwork assemblies. Dimensional tolerances of all components comply with corresponding international technical specifications to guarantee reliable fitting and stable force transmission during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be carried out for formwork tie rod system. Visual examination covers rod‑body bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Recycled outer threaded segments require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling tensile tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping, incomplete welding and structural cracks must be screened out and prohibited for site usage. Secondary destructive modification including arbitrary cutting, welding and hole‑drilling on finished system components is forbidden. Unauthorized alteration will change original steel section characteristics and weaken tensile performance or waterproof reliability of the whole assembly.

Partial components in formwork tie rod system support cyclic turnover usage. After concrete reaches design strength and formwork dismantling, detachable outer threaded segments, reusable nuts and pressure‑bearing accessories shall be disassembled following standard construction sequence. Concrete mortar, dust and foreign residues attached to thread grooves and fitting surfaces need thorough cleaning before next application. Impurities trapped in matching joints will cause jamming and interfere with normal assembling and clamping effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include mixed use of mismatched accessories, insufficient tightening of nuts, adoption of damaged parts and applying load exceeding rated capacity. These misoperations may trigger formwork bulging, component fracture, concrete dimension deviation or wall‑body water seepage risks. As a core penetrating fastening solution for concrete formwork engineering, raw‑material quality, processing craftsmanship, component‑matching accuracy and welding performance of formwork tie rod system directly affect construction safety, concrete forming quality and long‑term anti‑leakage performance of wall structures, and constitute essential preconditions for cast‑in‑place concrete wall construction.
