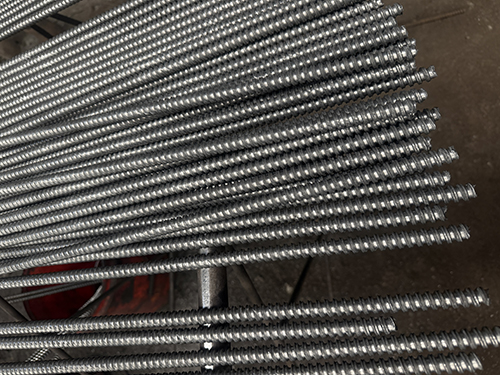

Concrete Tie Rod System

Concrete Tie Rod System is a complete set of coordinated formwork fastening hardware widely applied for cast‑in‑place concrete wall construction. This system consists of main tie rods, formwork nuts, wing nuts, pressure bearing plates, positioning cones, plastic sleeves and optional water‑stop plates. Each component performs independent mechanical functions. Combined assemblies can complete formwork tensioning, wall‑thickness positioning and waterproof sealing without modifying main formwork panels. High‑strength carbon steel is adopted as primary raw material. The system is divided into ordinary tie rod system and waterproof tie rod system. Ordinary type is used for common non‑waterproof wall structures. Waterproof type is fitted with fully‑welded water‑stop plate on the middle embedded rod to cut off capillary water seepage channels through wall penetration points. Two structural styles are available: integral one‑piece type and segmented assembled type. Integral tie rod is wholly embedded in concrete for single‑time usage. Assembled tie rod includes permanently embedded middle section and detachable outer threaded segments, and outer segments can be unscrewed and recycled after concrete curing. Thread sections are processed by thread rolling technology, improving thread‑tooth hardness and anti‑wear performance for repeated assembly and disassembly. Fastening nuts are manufactured by forging craft to maintain stable clamping force under lateral concrete pressure. Welding quality of water‑stop plates shall be strictly controlled to guarantee reliable waterproof performance for basements, water tanks and hydraulic‑engineering structures. Positioning cones and plastic sleeves achieve precise wall‑thickness control and reduce later surface‑repair workload of concrete members. Customized dimensions are supported according to project drawing requirements.

Multiple surface anti‑corrosion treatments adapt to diversified construction environments. Hot‑dip galvanizing forms compact zinc‑iron alloy protective layers covering rod bodies, thread teeth and welding seams. This coating delivers stable resistance against rainwater, humid air and salt‑fog erosion, suitable for long‑term outdoor, underground and water‑bearing construction projects. Electro‑galvanizing produces relatively thin zinc layer on steel surface, applicable for short‑cycle construction projects with low corrosion risk. Black oxide finish serves temporary dry‑condition works without strict anti‑corrosion requirements. Paint coating is rarely adopted for threaded parts, as paint layers tend to peel off under thread friction and concrete impact. The whole system bears expanding lateral force generated during concrete pouring, fixes spacing between opposite formwork panels, prevents formwork bulging, offset and deformation, and ensures dimension stability of cast‑in‑place concrete walls.

Core dimensional parameters determine practical mechanical performance of the whole system. Rod body diameter is a critical tensile‑load indicator, larger diameter corresponds to higher ultimate tensile capacity. Effective rod length shall match designed wall thickness plus formwork panel thickness and on‑site operating space. Thread specifications of tie rods and nuts must be fully consistent to avoid poor meshing, insufficient clamping force and component slipping. For waterproof system, dimension and welding quality of water‑stop plates shall satisfy anti‑seepage requirements under designed water head. Specification mismatch of positioning accessories will cause concrete dimension deviation. This system enjoys wide compatibility with timber formwork, steel formwork and various combined formwork assemblies. Dimensional tolerances of all components comply with corresponding international technical specifications to guarantee reliable matching and coordinated stress transmission during on‑site assembly.

Prior to construction deployment, visual inspection and sampling mechanical tests shall be implemented for concrete tie rod system. Visual examination covers rod‑body bending deformation, surface cracks, welding discontinuity, thread‑tooth damage and anti‑corrosion‑layer peeling. Recycled outer threaded segments require stricter inspection standards. Even with intact outward appearance, invisible metal fatigue may accumulate after repeated load cycles and cannot be judged merely through surface observation. Sampling tensile tests verify ultimate bearing capacity and anti‑deformation performance. Components with permanent bending, thread slipping, incomplete welding and structural cracks must be screened out and prohibited for site usage. Secondary destructive modification such as arbitrary cutting, welding and hole‑drilling on finished‑system components is forbidden. Unauthorized alteration will change original steel‑section characteristics and weaken tensile performance or waterproof reliability of the whole assembly.

Part of components in concrete tie rod system support cyclic turnover usage. After concrete curing and formwork dismantling, detachable outer threaded segments, reusable nuts and pressure‑bearing accessories shall be disassembled in standard sequence. Concrete mortar, dust and foreign residues attached to thread grooves and fitting surfaces need thorough cleaning before next application. Impurities trapped in matching joints will cause jamming and interfere with normal assembling and clamping effect in subsequent service cycles. Finished components shall be stored in dry and ventilated surroundings, sorted and stacked by specification grade, avoiding long‑term rain soaking and direct contact with damp soil. Improper on‑site operations include mixed use of mismatched accessories, insufficient tightening of nuts, adoption of damaged parts and over‑limit load application. These misoperations may trigger formwork bulging, component fracture, concrete dimension deviation or wall‑body water seepage risks. As a critical integrated fastening solution for concrete formwork engineering, raw‑material quality, processing craft, component‑matching accuracy and welding quality of concrete tie rod system directly determine formwork safety, concrete forming quality and long‑term anti‑leakage performance of wall structures, and constitute essential preconditions for cast‑in‑place concrete wall construction.
